Key Product Features & Capabilities

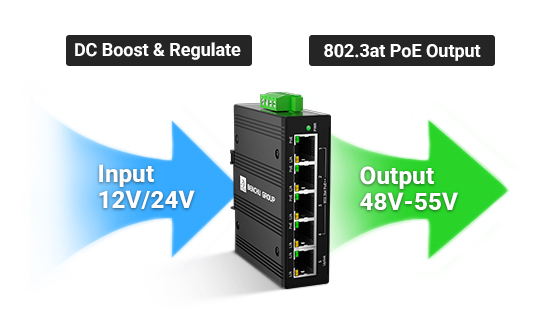

12V/24V Voltage Booster
Integrated step-up module converts low-voltage DC input into stable IEEE 802.3at 48V PoE output directly.

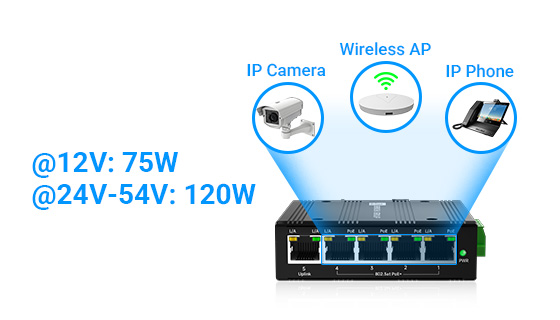

120W High Power Budget
Supplies a massive 120W total power budget, delivering full 30W PoE+ on all 4 network ports simultaneously.

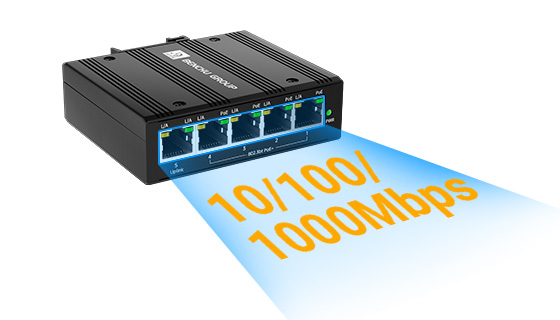

Full Gigabit Speed
Features 5 full-gigabit ports ensuring zero-latency, high-bandwidth data transmission for HD IP surveillance.

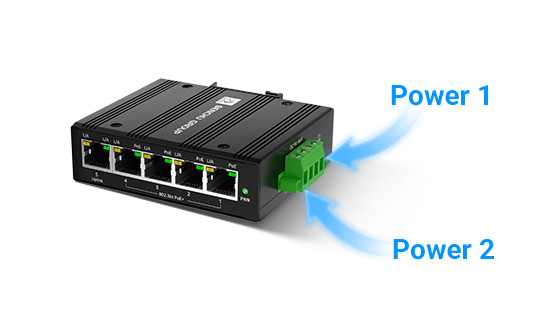

Dual Power Redundancy
Supports dual DC power inputs for seamless failover protection, ensuring zero downtime for critical networks.

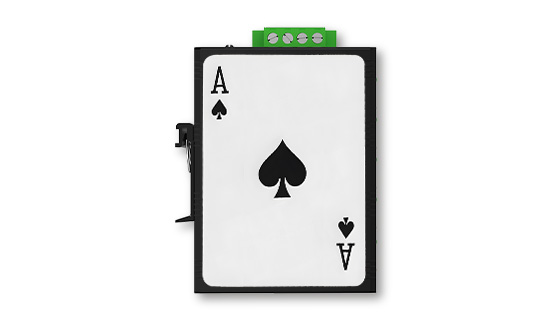

Ultra-Compact Size
Slightly larger than a deck of playing cards, saving valuable space in crowded outdoor enclosures and cabinets.
-40°C to 75°C Hardened
Industrial-grade fanless components endure extreme heat and sub-zero freezing climates flawlessly.
6KV Surge Protection
Built-in 6KV common mode surge protection shields network backbones against outdoor lightning spikes.

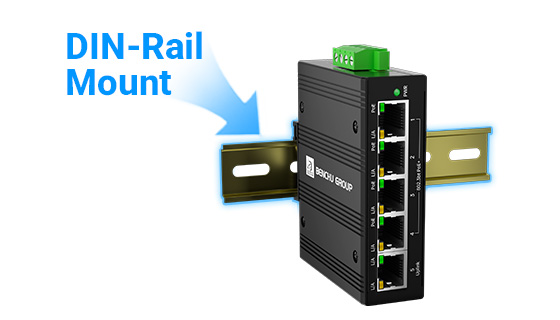

DIN-Rail Plug & Play
Standard 35mm DIN-rail mount design requires zero software configuration, ensuring quick deployment.
Industrial Connectivity Solutions
How to integrate the boost PoE switch into your low-voltage networks.
Seamless Deployment in 3 Core Networks

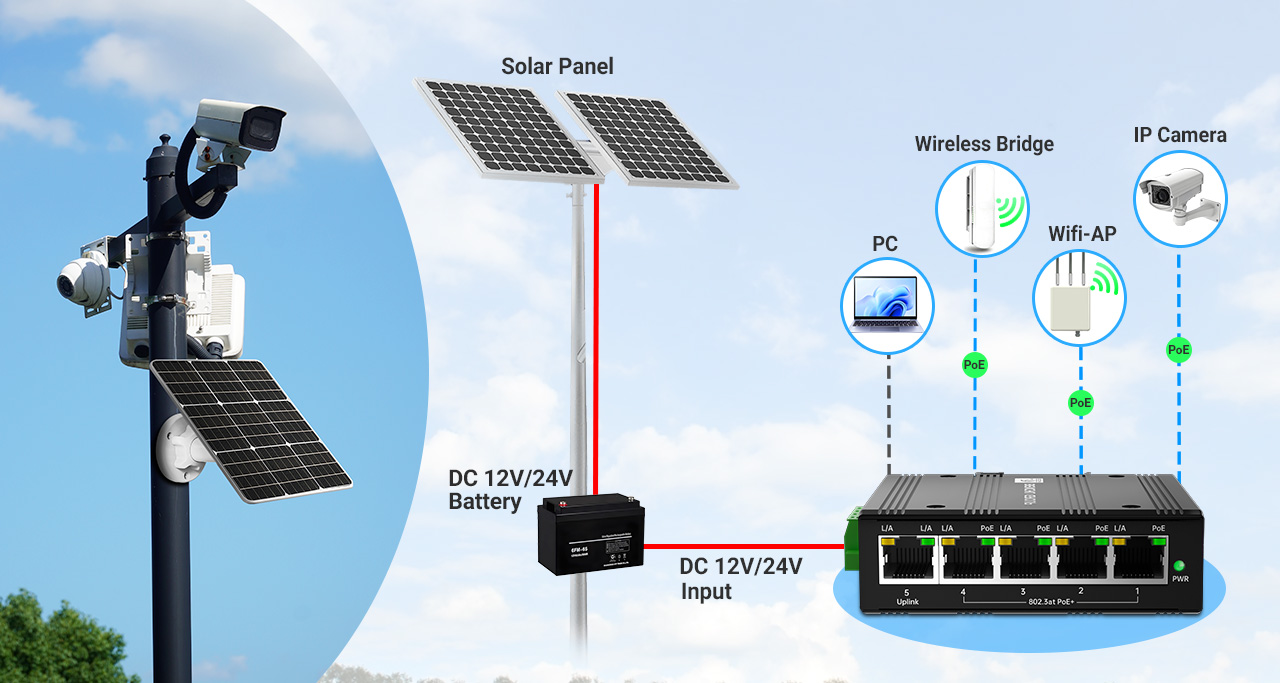

- 1. Solar-Powered Off-Grid Security Connect the dual DC inputs directly to a 12V/24V solar battery bank. The built-in booster steps up power to run up to 4 high-power outdoor IP cameras or wireless bridges with up to 75W/120W budget.
- 2. Vehicle Fleet Transit Surveillance Hook up to the 12V or 24V mobile battery of buses, trucks, or trains. The rugged, pocket-sized switch fits tight enclosures to power mobile NVRs, interior dome cameras, and routing gateways seamlessly.
- 3. 24V DC Factory Automation & ITS Mount directly onto standard 35mm DIN-rails inside standard industrial 24V cabinets. Provide a non-blocking Gigabit backbone for PLCs, HMIs, and heavy industrial IoT sensors.
Selection Guide
| Models |  FusionPoE-5P
Multi-Service Hybrid Ports |
 IES7211-4PGE1GF-BOS
SFP Fiber Uplink |
 IES7211-4PGE1GE-BOS
(30W PoE Unmanaged) |
 IES7511-4PGE2GF-SOL
(4 PoE L2 Managed) |
 IES7511-8PGE2GF-SOL
(8 PoE L2 Managed) |
|---|---|---|---|---|---|
| Max PoE Output | 30W(PoE) & 12W（24V） |
30W (PoE+) | 30W (PoE+) | 30W (PoE+) | 30W (PoE+) |
| POE Standard | 802.3at & 24V Passive PoE | 802.3at | 802.at | 802.3at | 802.3at |
| Ports | 3* 30W PoE + 1*24V PoE + 1*RJ45 |
4* 30W PoE + 1*SFP Solt | 4* 30W PoE + 1*RJ45 | 4* 30W PoE + 2*SFP | 8* 30W PoE + 2*SFP |
| Power Input | DC 9~54V Wide Voltage | DC 9~54V Wide Voltage | DC 9~54V Wide Voltage | DC 9~54V Wide Voltage | DC 9~54V Wide Voltage |
| Housing / IP | Aluminum / IP40 | Aluminum / IP40 | Aluminum / IP40 | Aluminum / IP40 | Aluminum / IP40 |
| Operating Temp | -40°C to +75°C | -40°C to +75°C | -40°C to +75°C | -40°C to +85°C | -40°C to +85°C |
| Surge / ESD | 6KV / 15KV | 6KV / 15KV | 6KV / 15KV | 6KV / 15KV | 6KV / 15KV |
| Action | View Detail | View Detail | Current Page | View Detail | View Detail |
🚀 OEM/ODM & White Label Services
Empower your brand with Benchu's 10+ years of PoE++ & Industrial Networking manufacturing expertise. We provide more than just hardware; we provide your brand's competitive edge.
Branding & ID
- Laser-etched Logo & Custom Labels
- Brand-specific Packaging (Giftbox/Carton)
- Unique Housing Colors (RAL/Pantone)
Software & Tech
- Custom Default IP/Login Credentials
- Private MIBs & Specialized Firmware
- PCBA-only Options for System Integration
Ready to Build Your Own Brand?
Standard OEM Lead Time: 2-3 Weeks | Low MOQ Branding
