5-Port Solar Powered PoE Switch | 12V/24V DC Input to 48V PoE Out | Outdoor Unmanaged Gigabit Switch for Solar Surveillance (IES7211-4PGE1GE-SOL)

solar industrial PoE Switch 4 port
4 port managed solar industrial poe switch
managed solar industrial poe switch
gigabit Solar power POE switch
DIN-Rail solar industrial poe switch 4 port

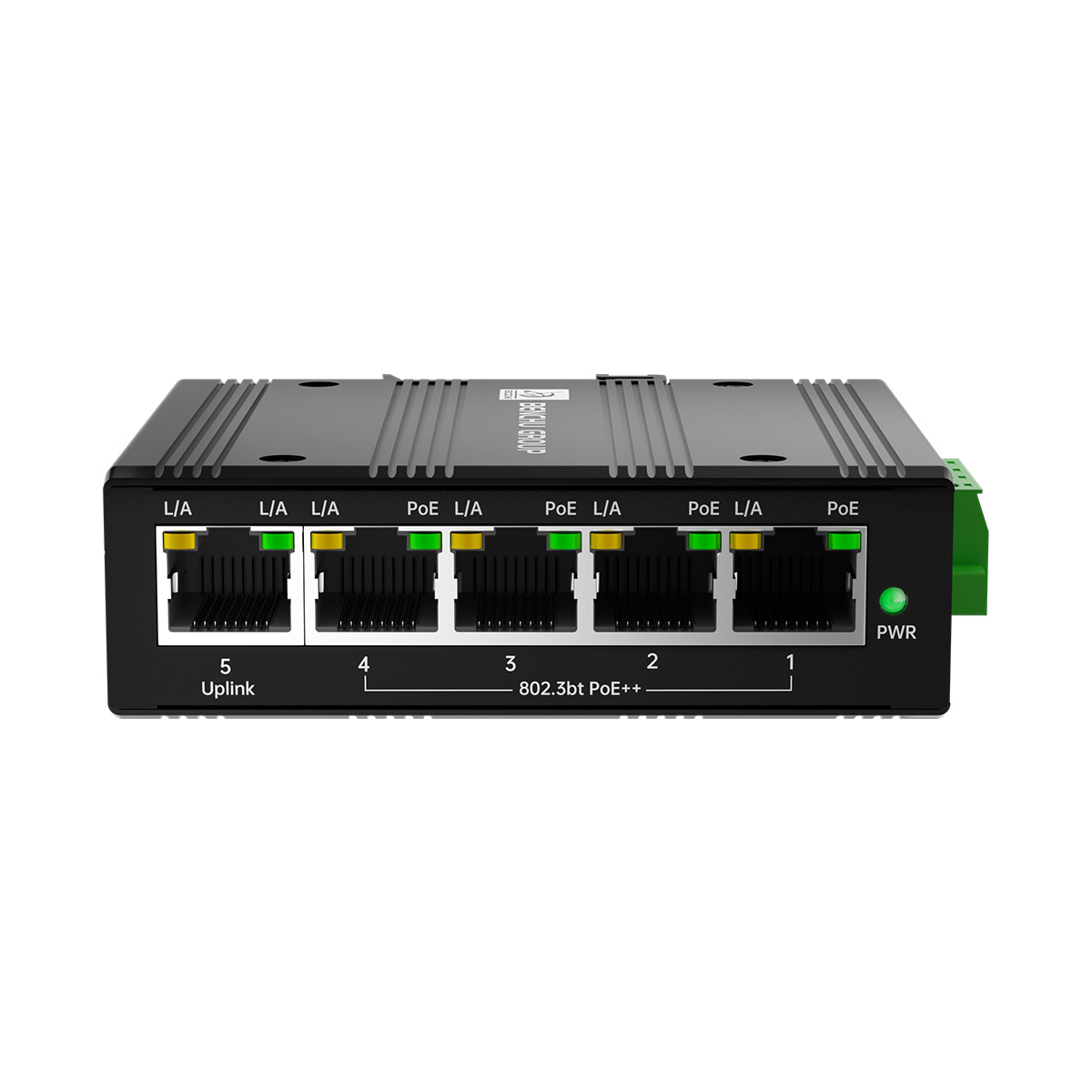

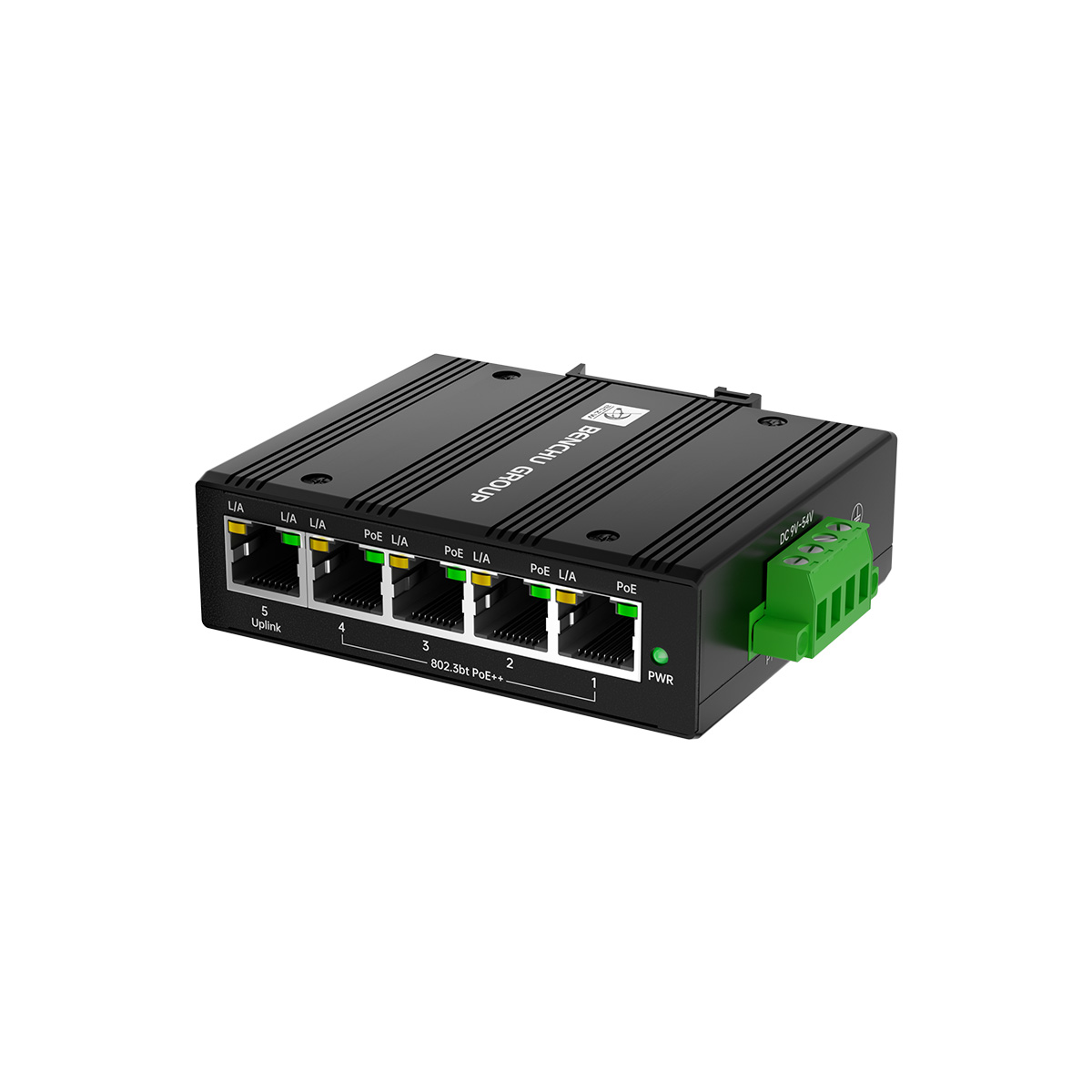

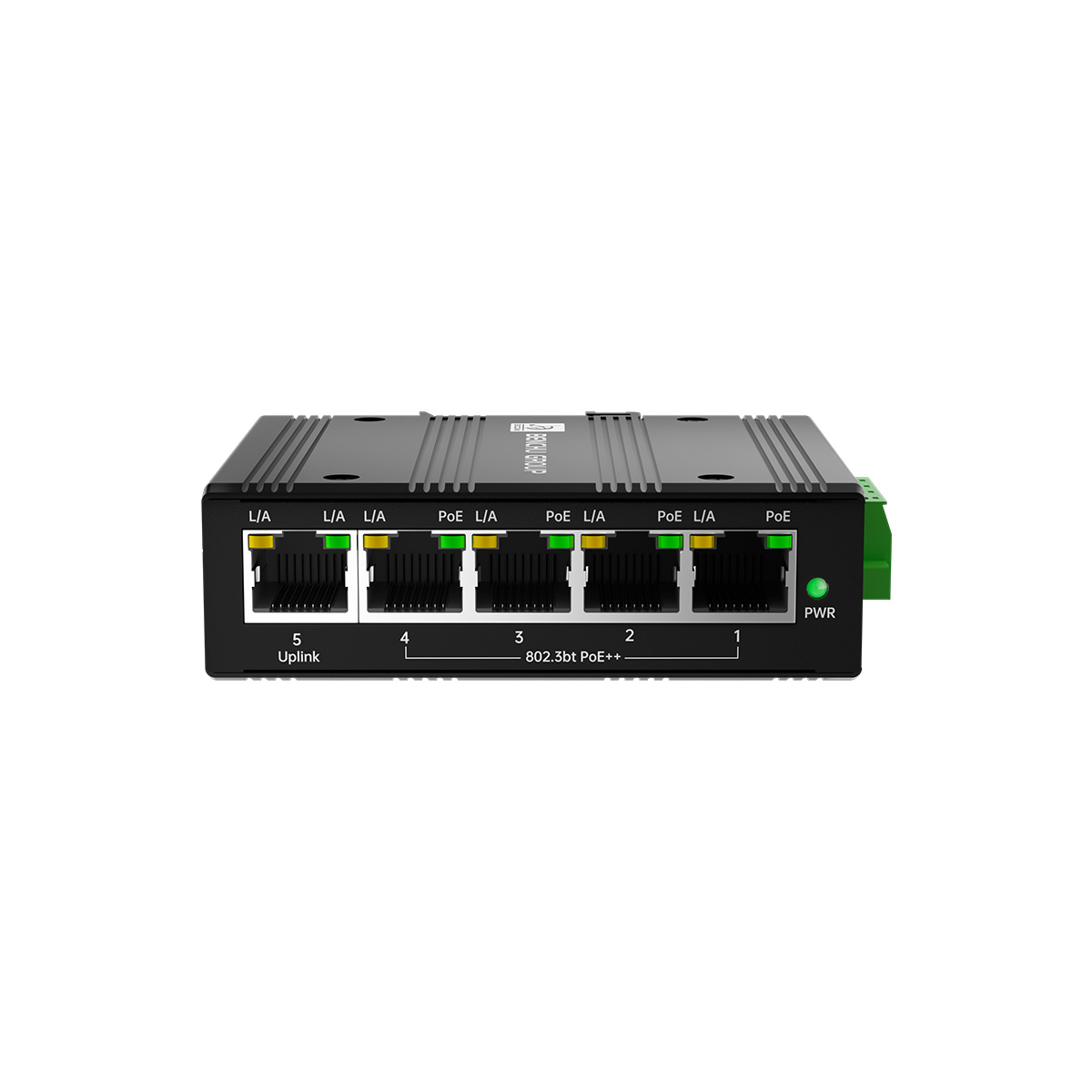

5-Port Solar Powered PoE Switch | 12V/24V DC Input to 48V PoE Out | Outdoor Unmanaged Gigabit Switch for Solar Surveillance (IES7211-4PGE1GE-SOL)

Pergunte agora

Specifically designed for off-grid solar power systems, features a built-in 12V/24V to 48V voltage booster to power standard PoE cameras directly from solar batteries.

Product Highlights
    • Designed for Solar: Wide DC input (12V-57V) with integrated 48V boost technology to power standard PoE devices from solar batteries.
    • High Efficiency: 4Gigabit PoE ports + 1Gigabit Uplink, ideal for remote IP cameras and wireless bridges.
    • Rugged Reliability: Fanless design with -40°C to +75°C operating range and 6KV surge protection.
    • Plug & Play: No complex configuration needed; optimized for outdoor cabinet installations.
    • OEM/ODM Support: Custom branding and industrial-grade housing options available.

5 port Solar powered PoE switch Obtained certification icon

Product Overview

The Benchu 5-Port Solar Industrial PoE++ Switch is a high-efficiency networking solution specifically engineered for off-grid, battery-powered surveillance and remote IoT connectivity. This model is designed to bridge the gap between low-voltage renewable energy and high-power edge devices, acting as the reliable heart of autonomous network stations.

Featuring an integrated Intelligent Voltage Booster, the switch accepts a wide DC input range from 12V to 24V solar battery systems and boosts it to a stable 48V-55V PoE output. This version is equipped with 4*Gigabit PoE++ ports and 1*Gigabit RJ45 Ethernet uplink, providing high-bandwidth copper connectivity for localized network expansion.

90W Ultra PoE++ (802.3bt)

Supports the latest IEEE 802.3bt standard, delivering up to 90 Watts per port. It is capable of driving heavy-duty PTZ speed dome cameras, Wi-Fi 7 Access Points, and IoT gateways directly from solar power.

Industrial Hardened Design

Built with a fanless IP40 aluminum housing for extreme environments. It operates reliably in temperatures ranging from -40°C to +75°C and features 6KV surge protection against lightning strikes.

Gigabit Copper Uplink

The dedicated Gigabit Ethernet RJ45 uplink ensures seamless integration with local NVRs, routers, or wireless bridges, providing a stable high-speed data backhaul for remote sites.

Applications: Smart Agriculture, Remote Mining Security, Forest Fire Monitoring, and Off-grid Highway Surveillance.

Features

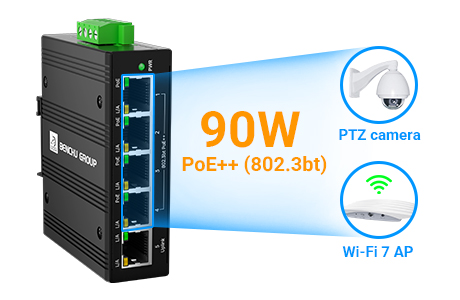

90W PoE++ Output

90W PoE++ Output

Supports IEEE 802.3bt standard to power high-demand PTZ cameras and Wi-Fi 7 APs.

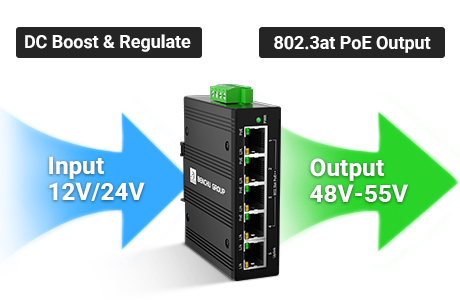

12V/24V Boost

12V/24V Voltage Boost

Integrated booster converts solar battery input to stable 48V-55V PoE output.

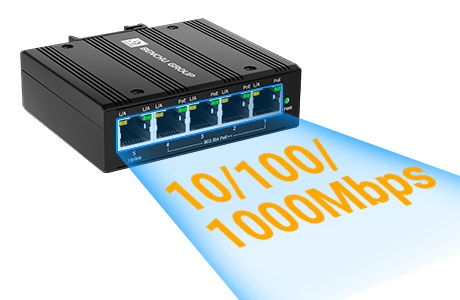

Gigabit Speed

Full Gigabit Ports

5*10/100/1000Mbps ports for high-speed, non-blocking data transmission.

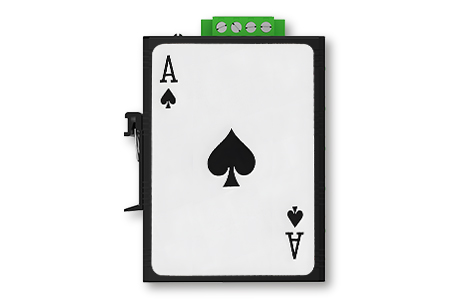

Ultra-Compact Size

Ultra-Compact Size

Extremely small footprint—smaller than a deck of cards—ideal for solar cabinets.

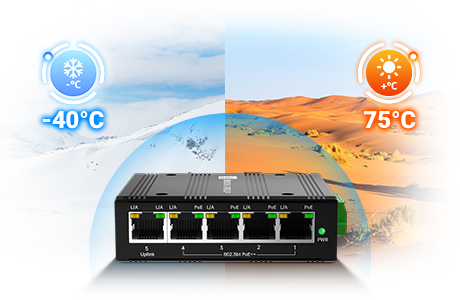

Extreme Temperature

Extreme Temperature

Industrial-hardened design operates reliably from -40°C to +75°C.

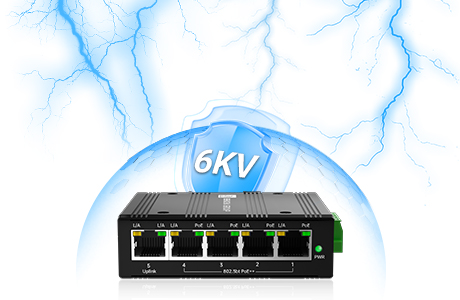

6KV Surge Protection

6KV Surge Protection

Professional lightning protection ensures system safety during thunderstorms.

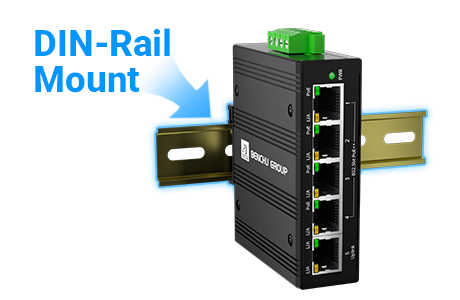

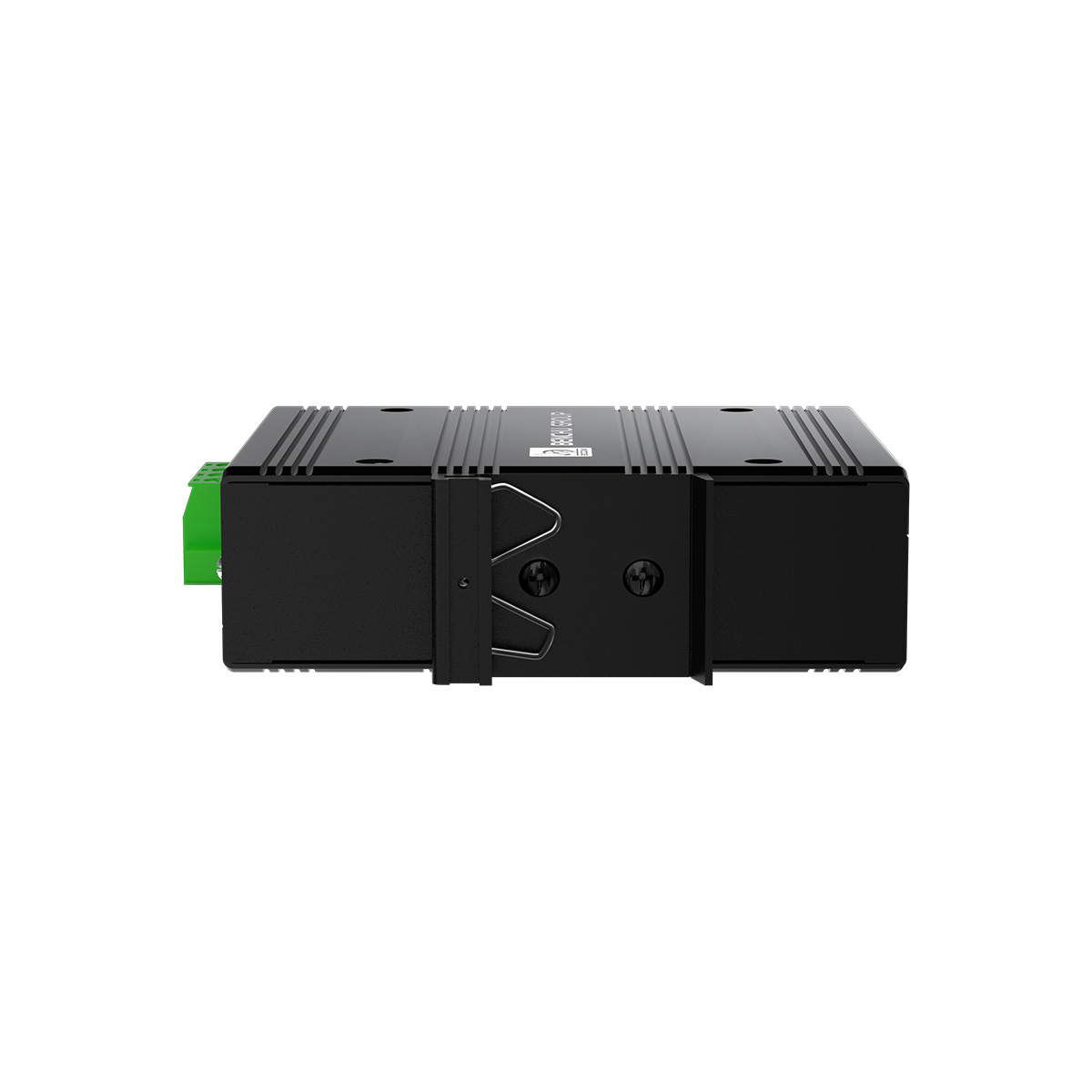

DIN-Rail Mount

DIN-Rail Mount

Rugged aluminum shell supports secure mounting on standard industrial rails.

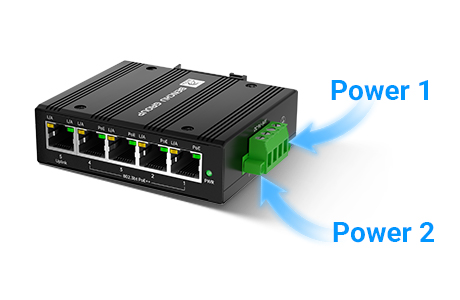

Redundant Power

Redundant DC Input

Dual power inputs provide failover protection for 24/7 operation.



Connectivity Solutions



4 Port Gigabit PoE Managed Solar Industrial switch with 2 Gigabit SFP Uplink of connectivity Solution



Solar Industrial Switch





Specification



Technical Specifications Details / Parameters
Product Model IES7211-5PGE1GE-SOL (5-Port Gigabit Solar PoE Switch)
Power Input DC 12V - 57V Wide Voltage Input (Ideal for 12V/24V Solar Systems)
PoE Output Integrated 48V Boost; 4*Gigabit PoE++ (802.3af/at/bt)
Interface 4*10/100/1000M PoE++ Ports + 1*10/100/1000M Uplink Port
Max PoE Budget 60W - 240W (Depends on Input Power)
Working Temp -40°C to +75°C (Industrial Grade)
Protection 6KV Surge Protection; ESD 15KV
Mounting DIN-Rail / Wall-mount (Compact Size)

  • Tipo de Negócio :

    Industrial

  • Bandido :

    1G

  • Mais filtros :

    Unmanaged



Questions & Answers
Q: Can I connect a 12V solar battery directly to this switch?
A: Yes! Our solar PoE switch has a built-in voltage booster. It accepts 12V or 24V DC input and converts it to stable 48V PoE for your cameras.

Q: Is this switch waterproof for outdoor use?
A: It is designed for outdoor cabinets with an industrial operating temperature of -40°C to 75°C. For direct outdoor exposure, we offer IP67 waterproof versions as part of our OEM/ODM service.

Q: What is the maximum power output per port?
A: Each PoE port supports up to 60W (IEEE 802.3bt), suitable for most IP cameras and wireless bridges.



Downloads



  • 4 Port Gigabit Managed Solar Industrial PoE Swtich with 2 Gigabit SFP Datasheet (IES7511-4PGE2GF-SLO)
