Overview

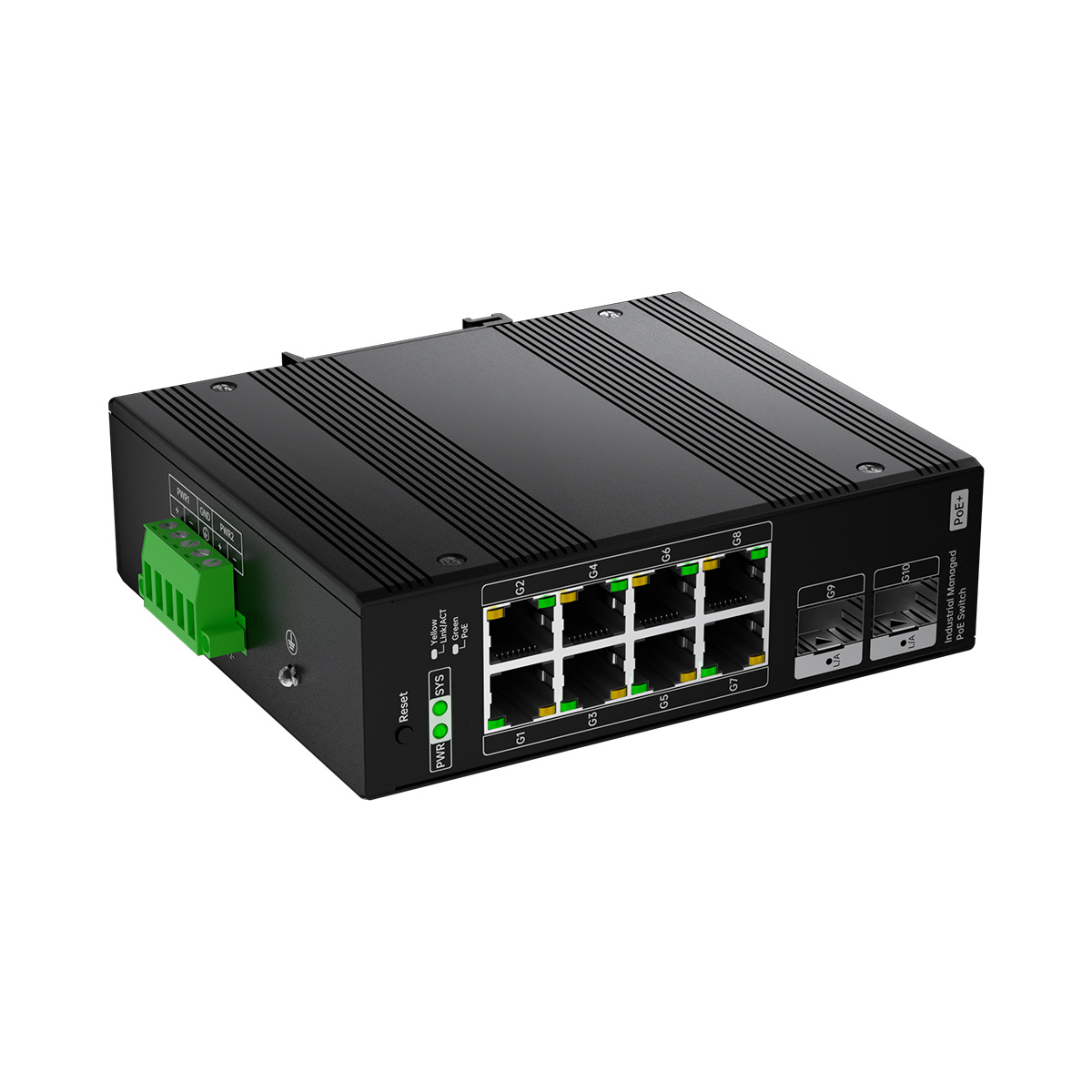

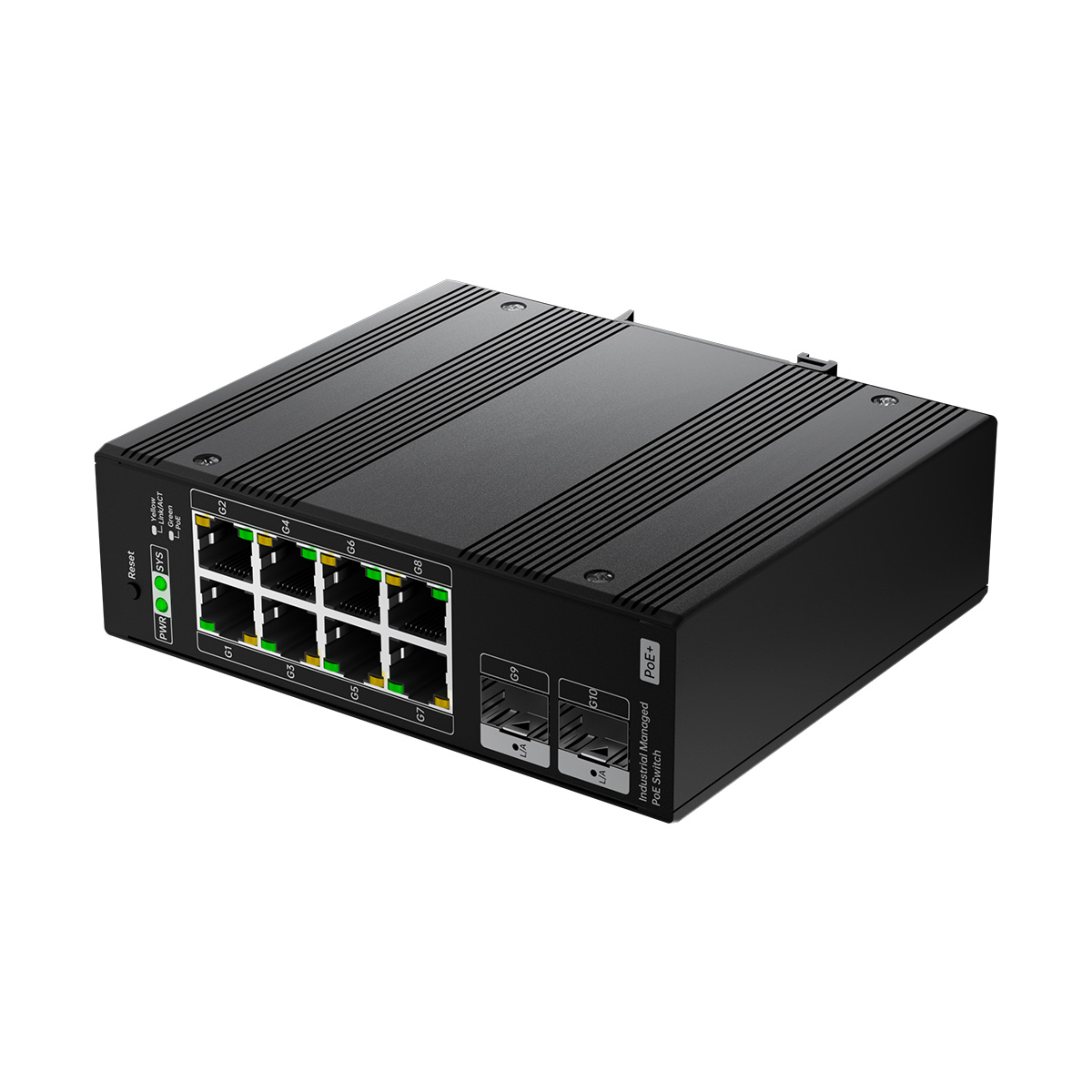

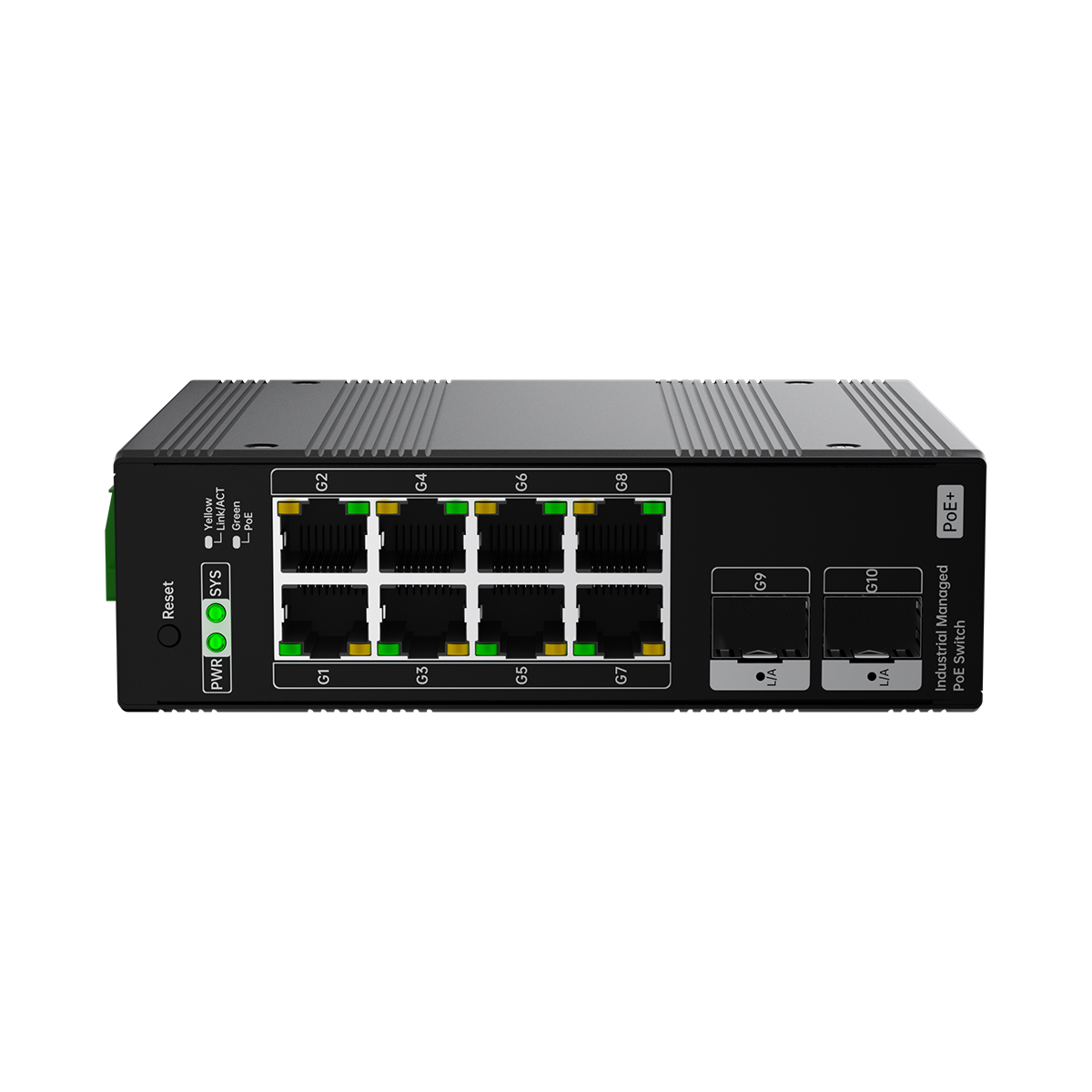

IES7311-8PGE2GF-DC, Web managed industrial PoE switch 8 port,with 2 gigabit SFP uplink,DIN-Rail mount
Features
Industrial Toughness & Wide Temp Range

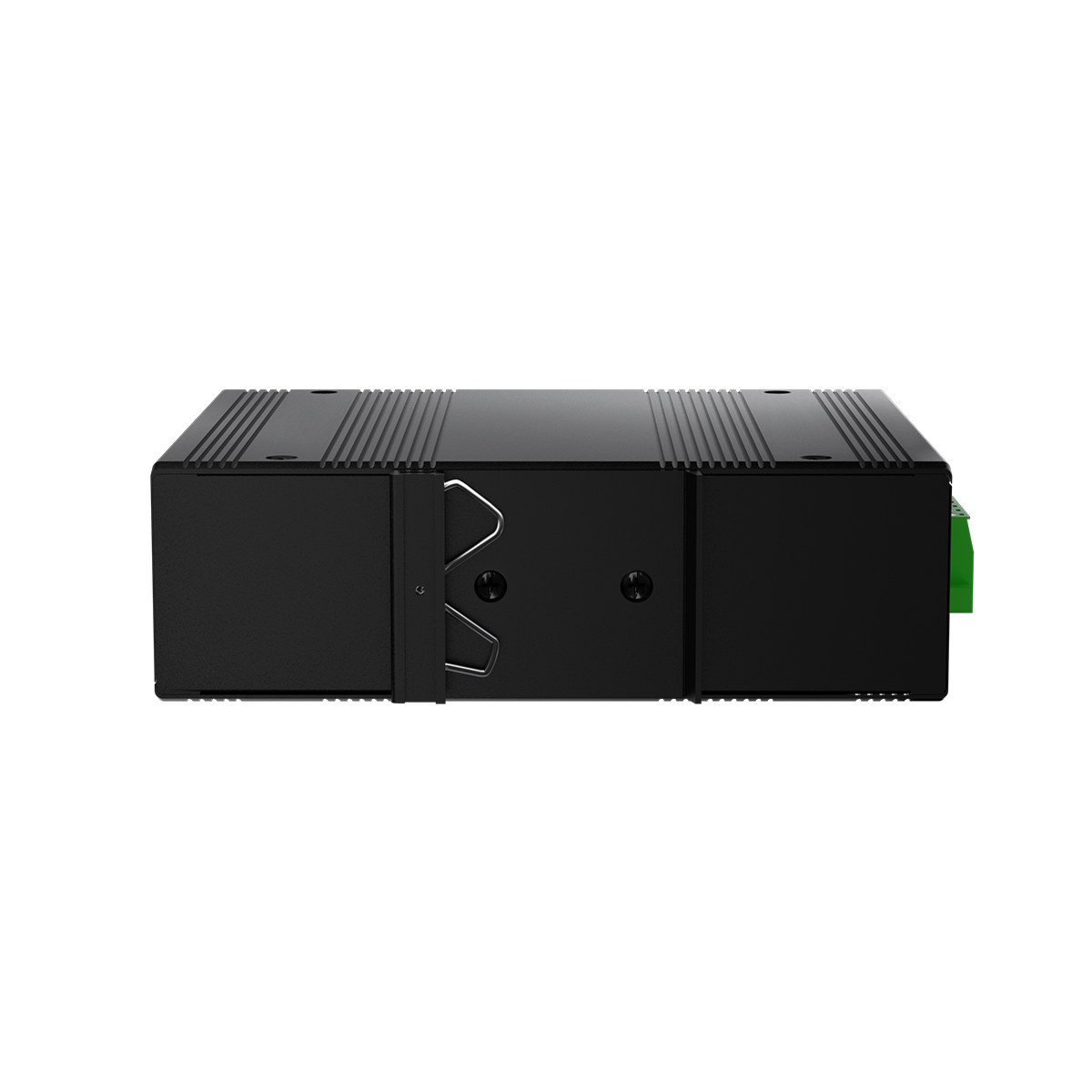

This 8 port industrial poe switch operates flawlessly from -40°C to 75°C with IP40 protection, 8KV surge defense, and rugged DIN rail mounting.Deploy worry-free in freezing warehouses, blazing factory floors, or dusty sites. Withstand voltage spikes from machinery and lightning. The compact rail-mount design saves space in control cabinets or roadside enclosures. Benefit: Slash maintenance costs and downtime with hardware built for harsh environments.
Flexible Gigabit SFP Uplinks
The web managed industrial PoE switch with dual SFP slots support fiber (single/mode) modules.Break the 100m Ethernet limit – extend networks up to 120km with fiber. Connect distant cameras, sensors, or other switches seamlessly. Avoid EMI noise in electrically noisy plants using optical links. Build scalable, interference-proof backbone networks across large industrial sites.
Smart PoE++ Power Management

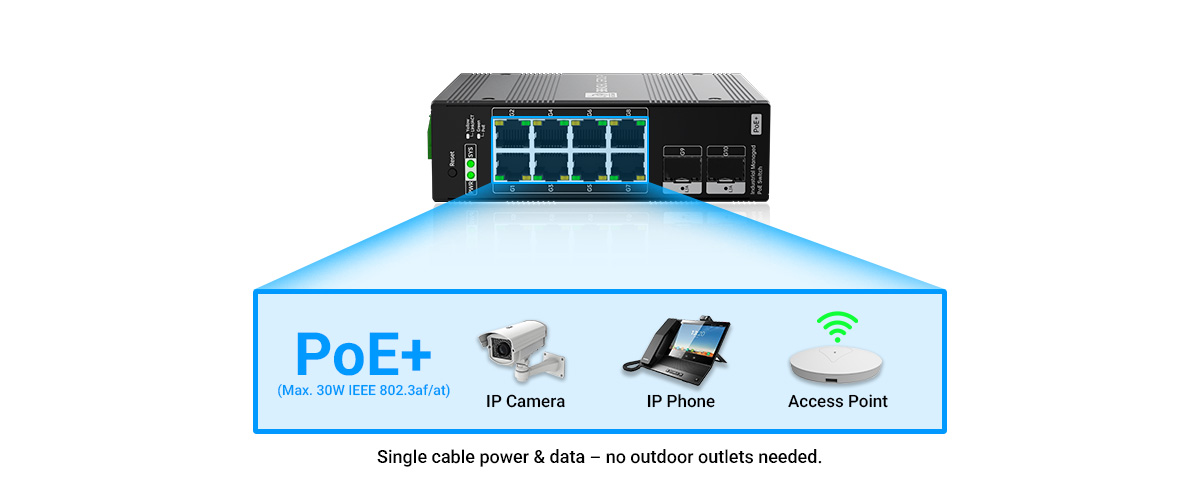

8× IEEE 802.3at PoE+ ports (30W/port, 240W total) with scheduling, priority, and remote reboot via web GUI.Power IP cameras, wireless APs, or access control over a single cable – no outdoor outlets needed. Schedule PoE on/off to save energy, reboot frozen devices remotely, and prioritize critical gear during power shortages. Cut installation costs 40%+ and ensure 24/7 uptime for powered devices.
Advanced Security & Traffic Control
VLAN isolation, QoS prioritization, bandwidth control, and storm protection.Separate OT/IT networks (e.g., isolate PLCs from office traffic). Guarantee bandwidth for video surveillance or VoIP using QoS. Block broadcast storms that cripple networks. Secure critical operations and eliminate lag for latency-sensitive applications.
Intuitive Web Management Interface
Browser-based centralized control for setup, monitoring, and diagnostics.Configure VLANs, PoE, or rings in minutes – no CLI expertise needed. Monitor port status, traffic flows, and power usage in real-time. Receive alerts for faults or attacks. Deploy and manage distributed industrial networks with IT-level control and 70% less effort.
Connectivity Solutions

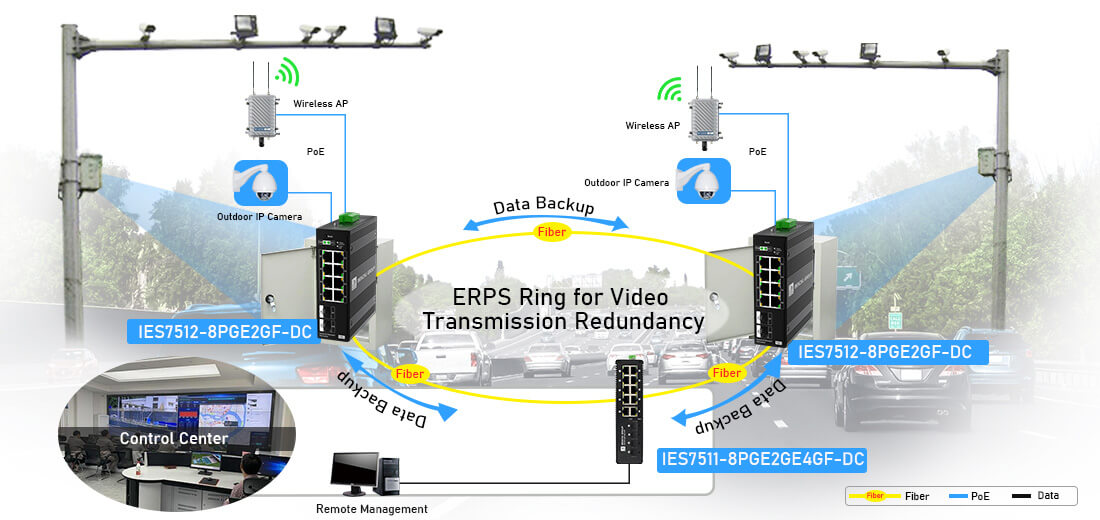

8 Port Gigabit Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution

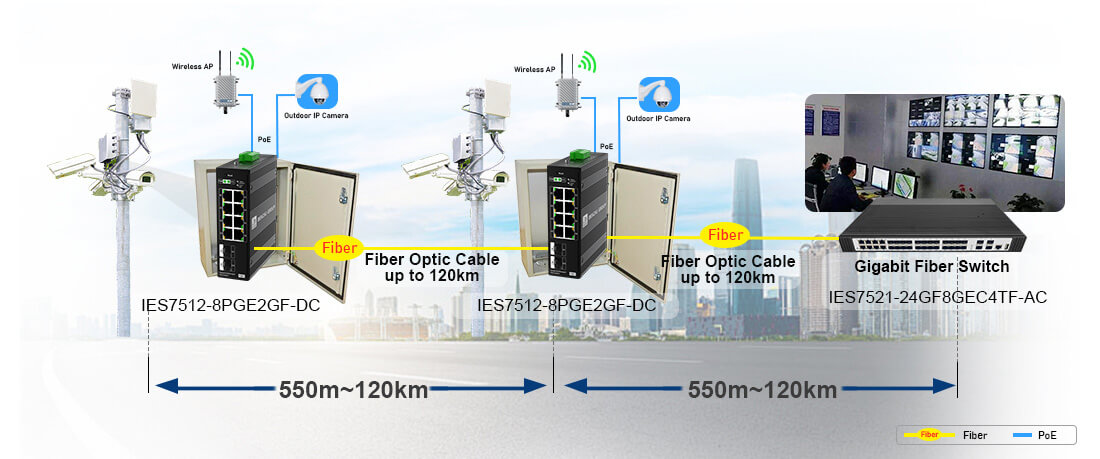

Web Managed Industrial PoE switch 8 port with 2 Gigabit SFP Uplink of connectivity Solution 2
Specification
Especificações técnicas :
IE7311-8PGE2GF-DCPortas de cobre RJ45 10M/100M/1G :
8Portas 1.25G SFP (fibra) :
2Portas PoE/PoE+ :
8Botão de reset :
YesAlimentação pela Ethernet :
*Padrão PoE :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetTipo de fonte de alimentação PoE :
End-span: 1/2 (+), 3/6 (-)Saída de energia PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Orçamento de energia PoE :
120 WattsEspecificação de performance :
*Memória buffer de pacotes :
1.6 MbModos de encaminhamento :
Store-and-forwardLargura de banda :
24 GbpsTaxa de encaminhamento de pacotes :
14.88Mpps (64 byte packet size)Tamanho do banco de dados de endereços MAC :
4K (48-bit MAC ad-dresses)Suporte para quadro Jumbo :
9KTempo médio entre falhas :
181,365 hours (MTBF) @ 25°CServiços L2 - VLANs :
*Marcação de VLAN IEEE 802.1Q :
YesVLANs baseadas em IP :
YesVLAN baseada em protocolo :
YesServiços L2 - Disponibilidade :
*Controle de tempestade :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAGs (LACP) :
YesIEEE802.3x :
YesProtocolo Rapid Spanning Tree IEEE 802.1w :
YesLink de agregação :
*Serviços de monitoramento e descoberta de rede :
*SNMP :
v1, v2cSegurança de rede :
YesIEEE802.1x :
YesSegurança baseada em porta por endereços MAC bloqueados :
YesQualidade de Serviço (QoS) :
*Limitação de taxa baseada em porta :
Yes ingress and egressQoS baseado em porta :
YesProtocolos de rede IEEE :
*Protocolos :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXProtocolos 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1w (RSTP)Gerenciamento, monitoramento e solução de problemas :
*Gerenciamento de senha :
YesAcesso baseado na Web TLS/HTTPS (versão) :
Yes (v1.2)Upload/download HTTP (firmware) :
YesLEDs :
YesPor porta :
Speed, Link, Activity; PoE in different modePor dispositivo :
PowerEspecificações Físicas :
*Dimensões (Largura * Profundidade * Altura) :
150 x 120 x 48 mm (5.91 x 4.72 x 1.89 in)Peso :
0.9 kg (1.98 lb)Proteção de casca :
P40 high-strength aluminum caseRequerimentos poderosos :
DC 48~56V, redundant power with reverse polarity protectionpoder maximo :
240WEthernet com eficiência energética (EEE) :
Yes (deactivated by default)Fã :
FanlessEspecificações Ambientais :
*Temperatura de operação :
-40° to 85°C (-40° to 185°F)Umidade operacional :
95% maximum relative humidity (RH), non-condensingAltitude de Operação :
10,000 ft (3,000 m) maximumTemperatura de armazenamento :
-40° to 85°C (-40° to 185°F)Umidade de armazenamento (relativa) :
95% maximum relative humidity, non-condensingAltitude de armazenamento :
10,000 ft (3,000 m) maximumPadrão Executivo e Proteção :
*Proteção contra raios :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Parte 15/CISPR22 (EN55022) :
Class BCEI 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (campo magnético pulsado) :
1000A/mIEC61000-4-10 (oscilação amortecida) :
30A/m, 1MHzIEC61000-4-12/18 (onda de choque) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (transmissão em modo comum) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (transmissão de radiofrequência) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (sobretensão): Cabo de alimentação :
CM±4kV/ DM±2kV, Data cable: ±4kVPropriedades mecânicas :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti Shockconteúdo do pacote :
*Todos os modelos :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideTipo de Negócio :
IndustrialBandido :
1GMais filtros :
WEB Managed
