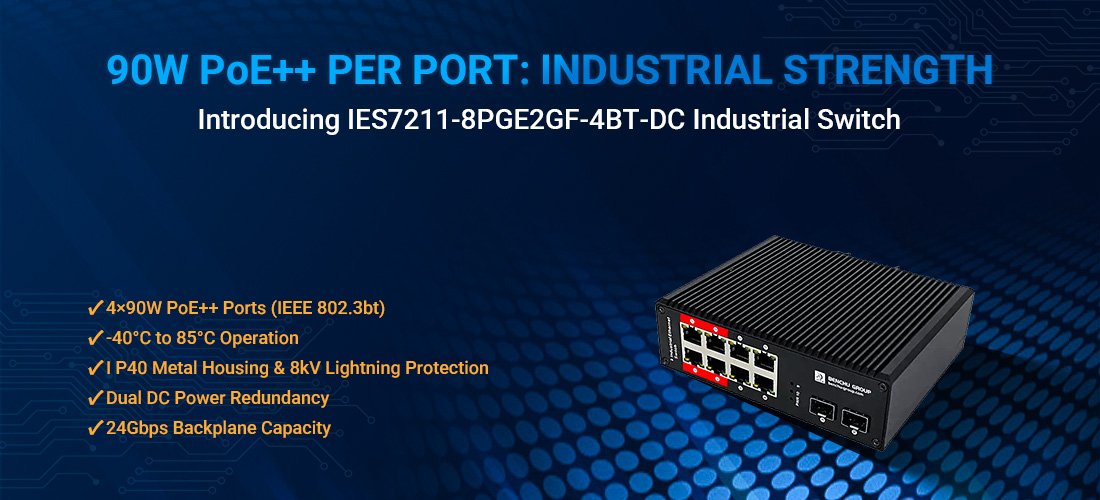

Network infrastructure engineers now have a robust solution for power-intensive industrial applications with the release of the IES7211-8PGE2GF-4BT-DC Industrial PoE++ Switch. This 8-port managed switch delivers unprecedented power density through IEEE 802.3bt (PoE++) implementation, supporting up to 90W per port on four dedicated interfaces. For researchers designing systems requiring high-power remote device operation, this switch eliminates critical power delivery constraints while maintaining industrial-grade reliability.

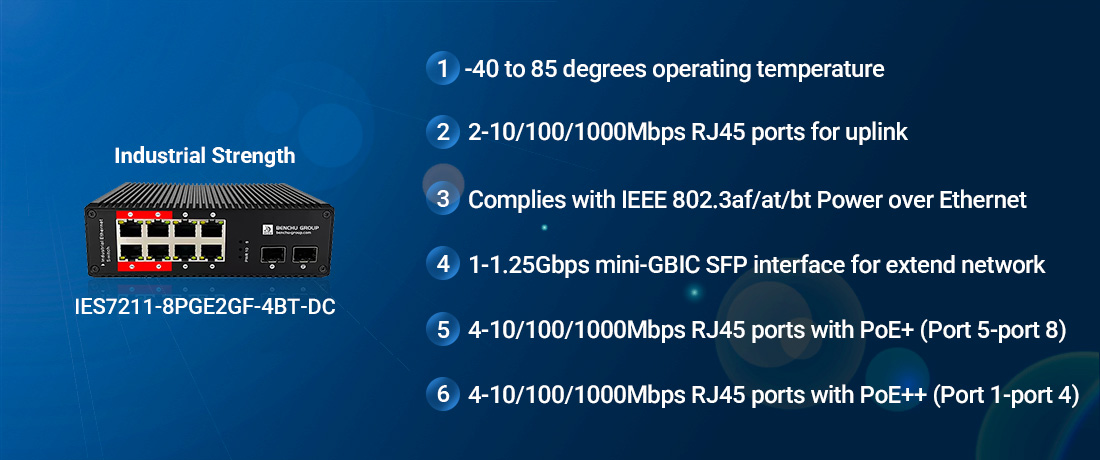

The Industrial PoE++ Switch features a scientifically optimized port configuration: Four 90W PoE++ ports (Ports 1-4) handle next-generation powered devices (PDs) like pan-tilt-zoom cameras, digital signage, and industrial IoT sensors, while four additional 30W PoE+ ports (Ports 5-8) support standard devices. Dual 1.25G SFP uplinks provide essential fiber connectivity for noise immunity and long-distance backbone links, crucial in distributed industrial environments. The 240W total PoE budget enables simultaneous high-power device deployment without compromise.
Engineers will appreciate the switch's hardened operational specifications. Designed for extreme environments, it operates reliably within a wide temperature range of -40°C to 85°C and features an IP40-rated aluminum housing for protection against dust and mechanical stress. Advanced electrical hardening includes ±8kV contact/±15kV air ESD protection and 8kV lightning surge protection on Ethernet ports – critical safeguards for maintaining network uptime in electrically noisy settings like manufacturing plants or outdoor installations.
Reliability is further enhanced through redundant power input support with DC supplies. This dual-power design ensures continuous operation during primary power failure, a non-negotiable requirement for mission-critical industrial control systems and safety monitoring applications. The DIN-Rail mounting capability simplifies secure integration into control cabinets alongside other industrial automation equipment.
Performance specifications meet industrial demands: A 24Gbps switching capacity and 14.88 Mpps forwarding rate guarantee line-speed throughput for latency-sensitive applications. The 8K MAC address table accommodates complex network topologies common in modern SCADA or IIoT deployments. Backward compatibility with IEEE 802.3af/at standards protects existing infrastructure investments.
This 90W PoE++ switch represents a significant advancement for powering next-generation industrial devices. By integrating high-density power delivery, fiber connectivity, and military-grade resilience into a single Industrial PoE++ Switch, the IES7211-8PGE2GF-4BT-DC enables researchers and network designers to deploy advanced powered devices in previously challenging environments while reducing cabling complexity and infrastructure costs.
