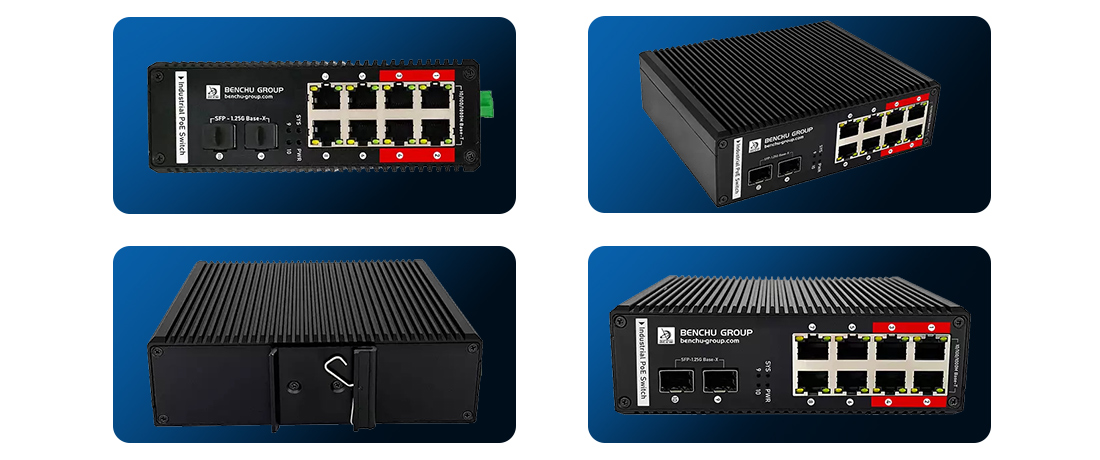

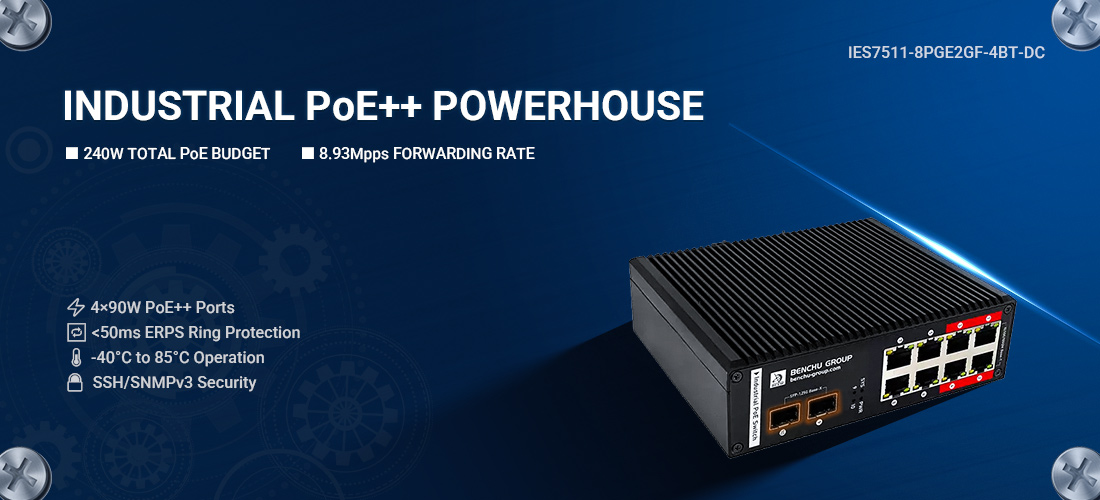

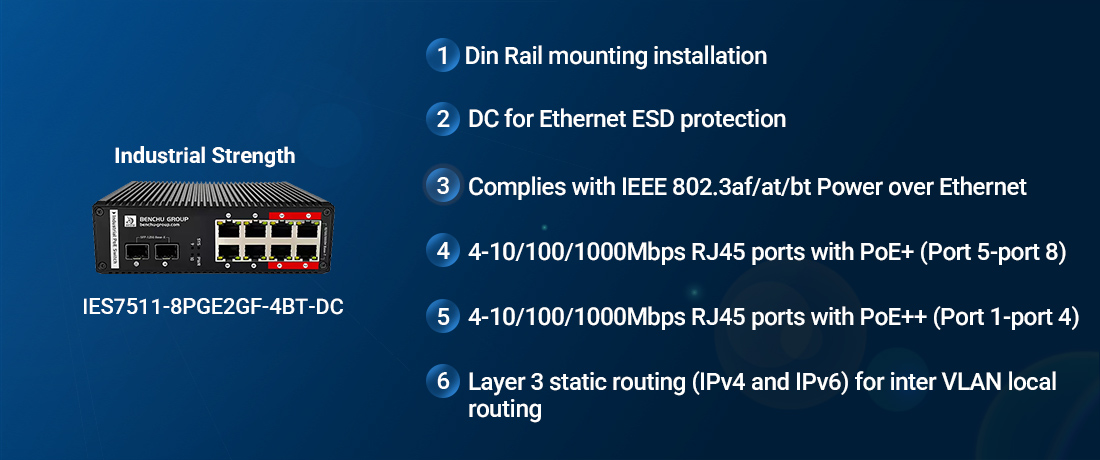

Benchu Group introduces its latest high-performance Industrial PoE++ Switch, the IES7511-8PGE2GF-4BT-DC, engineered to deliver robust power, advanced management, and industrial-grade resilience. Designed for mission-critical environments like factory automation, outdoor surveillance, and smart infrastructure, this 8-port Managed Industrial Switch integrates 4x 90W IEEE 802.3bt PoE++ ports (Ports 1-4) and 4x 30W PoE+ ports (Ports 5-8). With a total 240W power budget, it effortlessly powers high-consumption devices such as PTZ cameras, high-performance Wi-Fi 6/7 access points, and IoT gateways—eliminating the need for separate power supplies and reducing installation complexity.
Featuring dual Gigabit SFP uplink ports, this Layer 2 Managed Switch enables flexible fiber connectivity for long-distance deployments (up to several kilometers) and seamless integration with core network infrastructure. The SFP uplinks support bandwidth-intensive applications while enabling load balancing and network redundancy. Advanced Layer 3 features—including IPv4/IPv6 static routing, VLANs, QoS (DiffServ), and ACLs—ensure optimized traffic segmentation and prioritization for latency-sensitive operations. Support for ERPS (G.8032) and STP/RSTP/MSTP delivers <50ms failover recovery, guaranteeing uninterrupted connectivity in ring-topology networks.
Built for harsh conditions, this Managed Industrial Switch operates reliably across an industrial temperature range (-40°C to 85°C) and features an IP40-rated, aluminum housing with DIN-rail mounting. Dual redundant DC power inputs maximize uptime, while ±8KV contact/±15KV air ESD protection safeguards against electrical surges. Its 24Gbps backplane and 8.93Mpps forwarding rate ensure wire-speed performance across all ports, even under full PoE load.
For secure, scalable management, the switch supports SNMP v1/v2c/v3, RMON, CLI/Telnet, and SSH—enabling encrypted automation, real-time monitoring, and bulk configuration updates. Critical security protocols like 802.1X authentication, port security, and DHCP snooping defend against unauthorized access. IGMP Snooping and Fast Leave efficiently manage multicast traffic for applications like IP video distribution.
The IES7511-8PGE2GF-4BT-DC excels in future-proofing networks with its IPv4/IPv6 dual-stack support, ensuring seamless transition to next-gen addressing. Combined with 90W PoE++ capabilities and carrier-class reliability, Benchu Group’s solution is ideal for expanding industrial IoT deployments where power, distance, and uptime are non-negotiable.
