Overview
IES7221-16PGE4GC-AC, 16 Port Industrial PoE Switch,with 4 Gigabit RJ45/SFP Combo Uplink,24 PoE+ Port@500W power budget, Rack Mount
Features

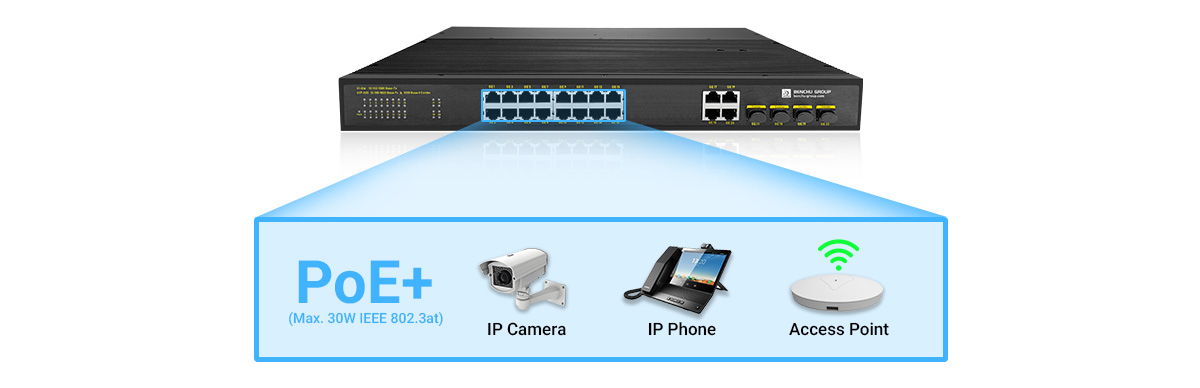

16 PoE Ports for Simultaneous Power and Data Transmission
This industrial PoE switch is equipped with 16 PoE ports that comply with IEEE 802.3af/at standards, providing up to 30W per port. It enables simultaneous power and data transmission for connected devices, such as IP cameras, wireless access points, and VoIP phones. The high power budget supports multiple power-intensive devices without requiring separate power supplies, making it ideal for industrial setups, outdoor surveillance systems, and smart infrastructure projects, simplifying deployments and reducing costs.
4 Gigabit RJ45/SFP Uplink Ports
The 4 uplink ports offer a combination of RJ45 and SFP interfaces, supporting both copper and fiber modules for flexible connectivity. These gigabit uplinks provide high-speed data transmission and ensure smooth connectivity to core switches, servers, or backbone networks. This flexibility is essential for handling long-distance connections and high-bandwidth applications, making the switch suitable for industrial automation, large surveillance systems, and other bandwidth-intensive environments.
Rugged Industrial-Grade Design
Built to withstand harsh environments, this 16 port industral PoE switch features a durable metal housing, a wide operating temperature range, and resistance to shocks and vibrations. Its rugged design ensures reliable performance in challenging industrial conditions, such as factories, transportation systems, and outdoor installations. This durability provides peace of mind for users deploying the switch in mission-critical applications where reliability is paramount.
Plug-and-Play Functionality
This unmanaged industrial PoE switch offers simple plug-and-play installation, eliminating the need for complex configurations. Users can connect devices quickly and easily, with auto-negotiation and auto-MDI/MDIX features ensuring compatibility. This straightforward setup saves time and reduces technical barriers, making it an excellent choice for non-technical users who need a reliable industrial networking solution for immediate deployment.
High PoE Power Budget for Demanding Applications
This 16 port industrial PoE switch is designed with a high PoE power budget, enabling all 16 PoE ports to simultaneously supply power to connected devices. This capacity is critical for environments requiring multiple high-powered devices, such as large-scale IP surveillance networks or wireless access point installations. The high power budget ensures consistent performance and reliability, even in power-intensive applications, minimizing downtime and operational challenges.
Advanced Surge Protection
Integrated surge protection safeguards the switch and connected devices from electrical surges caused by lightning strikes or power fluctuations. This feature is especially valuable in outdoor installations or areas prone to unstable power conditions, ensuring uninterrupted performance and prolonging the lifespan of the switch and connected devices.

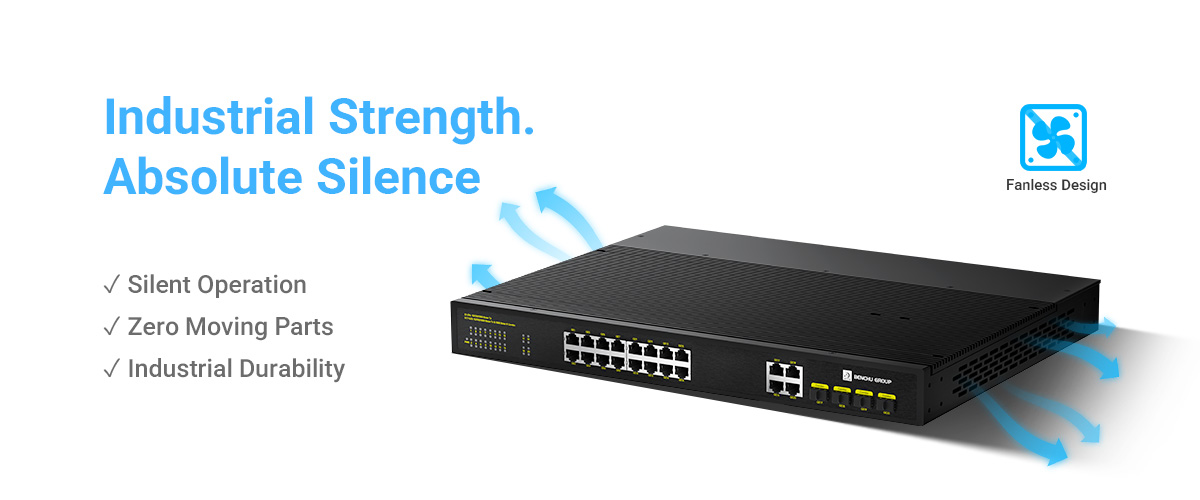

Fanless Design for Silent and Efficient Operation
The Industrial PoE switch employs a fanless design, ensuring silent operation and reducing maintenance concerns related to moving parts. It uses advanced heat dissipation mechanisms to maintain optimal performance even in high-temperature environments. The fanless design is particularly suitable for industrial settings where reliability, durability, and minimal noise are essential requirements.
Connectivity Solutions
16 Port Gigabit Industrial PoE Switch with 4 Gigabit RJ45/SFP Combo Uplink
Specification
Especificações técnicas :
IES7221-16PGE4GC-ACPortas de cobre RJ45 10M/100M/1G :
16Combinação Gigabit R4J5 e SFP :
4 ComboPortas PoE/PoE+ :
16Alimentação pela Ethernet :
*Padrão PoE :
IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over EthernetTipo de fonte de alimentação PoE :
End-span: 1/2 (+), 3/6 (-)Saída de energia PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Especificação de performance :
*Memória buffer de pacotes :
4.2 MbModos de encaminhamento :
Store-and-forwardLargura de banda :
64 GbpsTaxa de encaminhamento de pacotes :
35.72Mpps (64 byte packet size)Tamanho do banco de dados de endereços MAC :
8K (48-bit MAC ad-dresses)Suporte para quadro Jumbo :
9KProtocolos de rede IEEE :
*Protocolos :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoramento :
*LEDs :
YesPor porta :
Speed, Link, Activity; PoE in different modePor dispositivo :
PowerEspecificações Físicas :
*Dimensões (Largura * Profundidade * Altura) :
440 x 290 x 46mm (17.32 x 11.42 x 1.81 in)Peso :
6.1 kg (13.45 lb)Requerimentos poderosos :
AC 100~260V, redundant power with reverse polarity protectionConsumo de energia :
300W (when all ports used, line-rate traffic and max PoE)poder maximo :
15W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Consumo de energia ocioso :
9W (all ports link-down standby) (Watts)Ethernet com eficiência energética (EEE) :
Yes (deactivated by default)Fã :
FanlessEspecificações Ambientais :
*Temperatura de operação :
-40° to 85°C (-40° to 185°F)Umidade operacional :
95% maximum relative humidity (RH), non-condensingAltitude de Operação :
10,000 ft (3,000 m) maximumTemperatura de armazenamento :
-40° to 85°C (-40° to 185°F)Umidade de armazenamento (relativa) :
95% maximum relative humidity, non-condensingAltitude de armazenamento :
10,000 ft (3,000 m) maximumPadrão Executivo e Proteção :
*Proteção contra raios :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Parte 15/CISPR22 (EN55022) :
Class BCEI 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (campo magnético pulsado) :
1000A/mIEC61000-4-10 (oscilação amortecida) :
30A/m, 1MHzIEC61000-4-12/18 (onda de choque) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (transmissão em modo comum) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (transmissão de radiofrequência) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (sobretensão): Cabo de alimentação :
CM±4kV/ DM±2kV, Data cable: ±4kVPropriedades mecânicas :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockEmissões Eletromagnéticas e Imunidade :
*Certificações :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Segurança :
*Certificações de segurança :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Garantia e Suporte :
*Garantia limitada de hardware :
Limited Lifetime*Suporte Técnico via Telefone e E-mail* :
Limited Lifetime*Suporte técnico por bate-papo on-line 24 horas por dia, 7 dias por semana :
Limited Lifetime*conteúdo do pacote :
*Todos os modelos :
Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideTipo de Negócio :
IndustrialBandido :
1GMais filtros :
Unmanaged
