IES7221-24PGE4GC-4BT-AC, 24 Ports Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink,4 PoE++(90W) and 20 PoE+(30W) Ports, 500W Power budget
|
Physical Port
Power over Ethernet
|
Switching
Hardware
|
Features

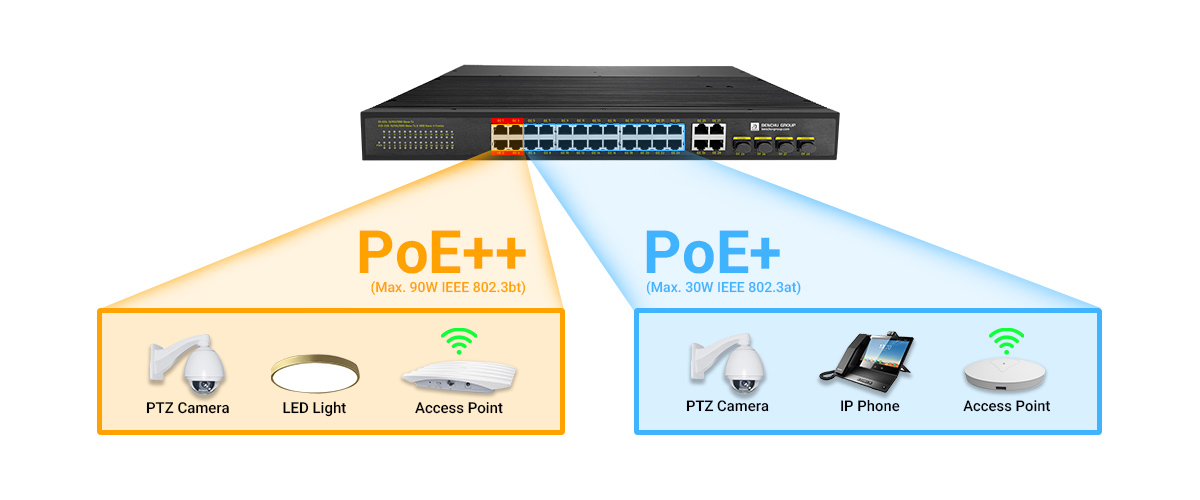

High-Power PoE++ Support
Equipped with 4 PoE++ (90W) and 20 PoE+ (30W) ports, the IES7221-24PGE4GC-4BT-AC offers a total 500W power budget, meeting the power-intensive needs of modern devices such as PTZ cameras, high-performance wireless APs, and industrial IoT equipment. This eliminates the need for additional power adapters, simplifying deployment and reducing cabling costs. Its ability to support diverse power requirements makes it suitable for applications requiring both high-power and standard PoE devices, ensuring versatility and scalability in industrial networks.

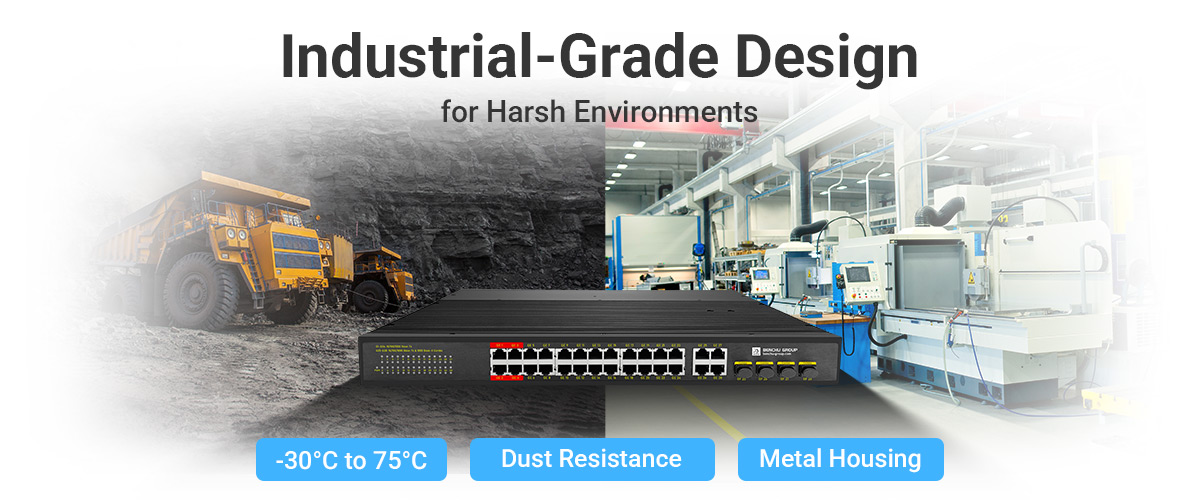

Industrial-Grade Design for Harsh Environments
Built to endure extreme industrial conditions, the IES7221-24PGE4GC-4BT-AC operates reliably in temperatures ranging from -30°C to 75°C. The rugged construction and high-quality materials ensure durability and resistance to environmental factors like dust, moisture, and vibration. It is ideal for outdoor or semi-outdoor installations in challenging environments, including factories, mines, and smart transportation systems. This robust design provides uninterrupted network performance even in the most demanding operational settings.
4 Gigabit RJ45/SFP Combo Uplink Ports
The inclusion of 4 Gigabit RJ45/SFP Combo Uplink ports provides flexibility for network expansion and high-speed data transfer. These uplinks allow seamless connections to fiber or copper cables, ensuring compatibility with a wide range of networking infrastructures. Whether scaling an existing network or connecting to core systems, these uplinks provide reliable data throughput, enabling bandwidth-intensive applications such as HD video streaming, IoT data aggregation, and critical surveillance systems.
ESD Protection for Enhanced Stability
Featuring 8KV ESD (Electrostatic Discharge) protection, this 24 port industrial PoE++ switch safeguards connected devices and network equipment against sudden electrical surges. This ensures stable and uninterrupted operation, especially in environments prone to static discharge or power fluctuations. By protecting your investment from potential damage, the switch reduces maintenance costs and prolongs the lifespan of both the network infrastructure and connected devices, making it a reliable choice for industrial applications.
Comprehensive Power Management
This 24 port industrial PoE++ switch offers intelligent power management, ensuring optimal allocation of its 500W power budget. It prioritizes critical devices while preventing overloading, improving network efficiency and reliability. Users can monitor and control power usage via an intuitive interface, reducing energy consumption and operational costs. This feature makes it ideal for deployments with varied power demands, such as large-scale surveillance systems or smart city applications, where efficient power distribution is crucial.
Plug-and-Play Installation
Designed for ease of use, the IES7221-24PGE4GC-4BT-AC supports plug-and-play installation, eliminating the need for complex configurations. This simplifies deployment, even for non-technical users, saving time and reducing operational costs. Its auto-sensing PoE ports automatically detect connected devices' power requirements, ensuring compatibility and minimizing setup errors. This feature is particularly beneficial for fast-paced industrial projects requiring quick and reliable network deployment.
Connectivity Solutions
24 Port Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Uplink Connectivity Solution
Specification
Especificações técnicas :
IES7221-24PGE4GC-4BT-ACPortas de cobre RJ45 10M/100M/1G :
24Combinação Gigabit R4J5 e SFP :
4Portas PoE/PoE+ :
20 (up to 30W per port)Portas PoE/PoE+/PoE++/UPoE+ :
4 (up to 90W per port)Alimentação pela Ethernet :
*Padrão PoE :
IEEE 802.3bt Power over Ethernet Plus Plus / PoE++； Backward compatible with IEEE 802.3af/at Power over EthernetTipo de fonte de alimentação PoE :
End-span: 1/2/4/5 (+), 3/6/78 (-)Saída de energia PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) ； Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)Especificação de performance :
*Memória buffer de pacotes :
8.2 MbModos de encaminhamento :
Store-and-forwardLargura de banda :
128 GbpsTaxa de encaminhamento de pacotes :
47.62Mpps (64 byte packet size)Tamanho do banco de dados de endereços MAC :
8K (48-bit MAC ad-dresses)Suporte para quadro Jumbo :
9KProtocolos de rede IEEE :
*Protocolos :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex FlowMonitoramento :
*LEDs :
YesPor porta :
Speed, Link, Activity; PoE in different modePor dispositivo :
PowerEspecificações Físicas :
*Dimensões (Largura * Profundidade * Altura) :
440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)Peso :
<6.6 kg (11.55 lb)Consumo de energia :
500W (when all ports used, line-rate traffic and max PoE)poder maximo :
16W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Consumo de energia ocioso :
10W (all ports link-down standby) (Watts)Ethernet com eficiência energética (EEE) :
Yes (deactivated by default)Fã :
FanlessEspecificações Ambientais :
*Temperatura de operação :
-30° to 75°C (-22° to 167°F)Umidade operacional :
95% maximum relative humidity (RH), non-condensingAltitude de Operação :
10,000 ft (3,000 m) maximumTemperatura de armazenamento :
-40° to 85°C (-40° to 185°F)Umidade de armazenamento (relativa) :
95% maximum relative humidity, non-condensingAltitude de armazenamento :
10,000 ft (3,000 m) maximumPadrão Executivo e Proteção :
*Proteção contra raios :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Parte 15/CISPR22 (EN55022) :
Class BCEI 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (campo magnético pulsado) :
1000A/mIEC61000-4-10 (oscilação amortecida) :
30A/m, 1MHzIEC61000-4-12/18 (onda de choque) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (transmissão em modo comum) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (transmissão de radiofrequência) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (sobretensão): Cabo de alimentação :
CM±4kV/ DM±2kV, Data cable: ±4kVPropriedades mecânicas :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockEmissões Eletromagnéticas e Imunidade :
*Certificações :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Segurança :
*Certificações de segurança :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Garantia e Suporte :
*Garantia limitada de hardware :
Limited Lifetime*Suporte Técnico via Telefone e E-mail* :
Limited Lifetime*Suporte técnico por bate-papo on-line 24 horas por dia, 7 dias por semana :
Limited Lifetime*conteúdo do pacote :
*Todos os modelos :
Smart Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideTipo de Negócio :
IndustrialBandido :
1GMais filtros :
Unmanaged
