Managed 8 Port Industrial PoE Switch with 4-10G SFP+ Uplink, IES7511-8PGE4TF-DC

Pergunte agora

BENCHU GROUP's IES7511-8PGE4TF-DC managed 8 port industrial PoE switch with 4 10G SFP+ ports is designed for high-performance networking in demanding environments.

Product Highlights
    • 8 ports 10/100/1000M RJ45 supporting PoE+ to PD device
    • 4 Ports 1G/2.5G/10G SFP+ to core network
    • ERPS(G.8032) STP/FSTP/MSTP for Ring network and Link protection
    • Support Layer 3 static routing RIP/OSPF/VRRP (IPv4 and IPv6)
    • IGMP Snooping, IGMP Querier and IGMP Fast Leave for multicast optimization
    • Include VLANs, PoE scheduling, ACLs, DiffServ, LACP, MVR and DHCP
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • DC for Ethernet ESD protection
    • -40 to 85 degrees operating temperature
    • IP40 Industrial design with redundant power input
    • Din Rail mounting installation
    • Backplane bandwidth 128Gbps，Packet forwarding rate 95Mpps，MAC address 16k

Layer 3 Managed PoE Switch

Overview



IES7511-8PGE4TF-DC, Layer 3 Managed 8 Ports Gigabit Industrial PoE Switch,with 4-10Gb SFP+ Uplink,DIN-Rail Mount

BENCHU GROUP's IES7511-8PGE4TF-DC managed 8-port industrial PoE switch with 4 10G SFP+ ports is designed for high-performance networking in demanding environments. Equipped with 8 PoE-capable Gigabit Ethernet ports, it delivers up to 30W per port, supporting devices like IP cameras, wireless access points, and VoIP phones. The 4 10G SFP+ ports offer lightning-fast uplink speeds, ensuring seamless data transmission for large-scale applications.

Built for reliability, this switch operates effectively in harsh industrial settings, with a wide temperature range and robust metal housing for durability. Advanced Layer 2 and Layer 3 management features, including VLAN, QoS, and IGMP snooping, RIP,OSPF,VRRP,optimize network traffic for efficiency and security.

This managed industrial PoE switch is ideal for industries like surveillance, transportation, and industrial automation, where high-speed and reliable data transmission are critical. Its plug-and-play PoE function simplifies device installation, reducing the need for additional power infrastructure and cutting costs.

By integrating this industrial PoE switch, users benefit from enhanced network scalability, streamlined operations, and cost-effective power and data management. With its superior performance and rugged design, it ensures stable, high-speed connectivity for mission-critical applications.



Physical Port

  • 8-10/100/1000BASE-TX Fast Ethernet RJ45 ports with PoE+
  • 4-1G/2.5G/10GBASE-X mini-GBIC/SFP+ slot
  • 1-RJ45 console interface for switch management and setup
  • 1-Reset button for system factory default and reboot
  • 1-USB interface for switch setup



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Remote power feeding up to 100 meters
  •
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode
  • PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE Port Power feeding priority
  • Per PoE port power limitation
  • PoE Timed startup and shutdown
  • PD classification detection
  • Intelligent PoE features
  • PD alive check
  • PoE schedule
  • PoE extension



Switching

  • Backplane bandwidth 128Gbps，Packet forwarding rate 95Mpps，MAC address 16k
  • Hardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation



Hardware

  • Industrial Case and Installation
  • IP40 High- strength Aluminum case
  • DIN-rail mount design
  • 48~56V DC, redundant power with reverse polarity protection
  • Supports 8KV DC Ethernet ESD protection
  • -40 to 85 degrees C operating temperature
  • LED indicators for Power,PoE Working and LINK/ACT



Lightning Protection

  • IEC61000-4-3 (RS):10V/m (80~1000MHz)
  • FCC Part 15/CISPR22 (EN55022):Class B
  • IEC61000-6-2:Common Industrial Standard
  • IEC61000-4-9 (Pulsed magnet field) :1000A/m
  • IEC61000-4-10 (Damped oscillation) :30A/m, 1MHz
  • IEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kV
  • IEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kV
  • IEC61000-4-16(Common-mode transmission) :30V, 300V, 1s
  • IEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air discharge
  • IEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)
  • IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3s
  • IEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kV



Mechanical Properties

  • IEC60068-2-6:Anti Vibration
  • IEC60068-2-32:Free Fall
  • IEC60068-2-27:Anti Shock

Layer 3 Features

  • Support Static routing
  • Support RIP
  • Support OSPF
  • Support VRRP



Layer 2 Features

  • Support IEEE 802.1Q VLAN
  • Support MAC VLAN
  • Support Surveillance VLAN
  • Support Voice VLAN
  • Support QinQ VLAN
  • Supports Spanning Tree Protocol
  • Supports Link Aggregation (LACP)
  • Supports port mirror
  • Supports Multicast Filtering (IGMP)
  • Supports DHCP
  • Supports ERPS
  • Supports RMON
  • Supports MLD snooping
  • Supports MVR
  • Supports UDLD
  • Supports Quality of Service (Qos)
  • Supports Static routing
  • Supports Port Error Disable
  • Supports Rate Limit
  • Supports Storm Control
  • Supports PoE Managed



Security

  • Support IEEE 802.1x
  • Support RADIUS accounting
  • Support Access Control Lists (ACLs)
  • Support MAC Security
  • Support IP Source Guard prevents IP spoofing attacks
  • Support DoS Attack Prevention
  • Support aaa authentication





Management

  • IPv4 and IPv6 dual stack management
  • Web switch management
  • Console/Telnet Command Line Interface
  • SNMP v1 and v2c switch management
  • SSHv2, TLSv1.2 and SNMP v3 secure access
  • Firmware upload/download via HTTP/TFTP
  • Configuration upload / download through Web interface
  • Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED





Features

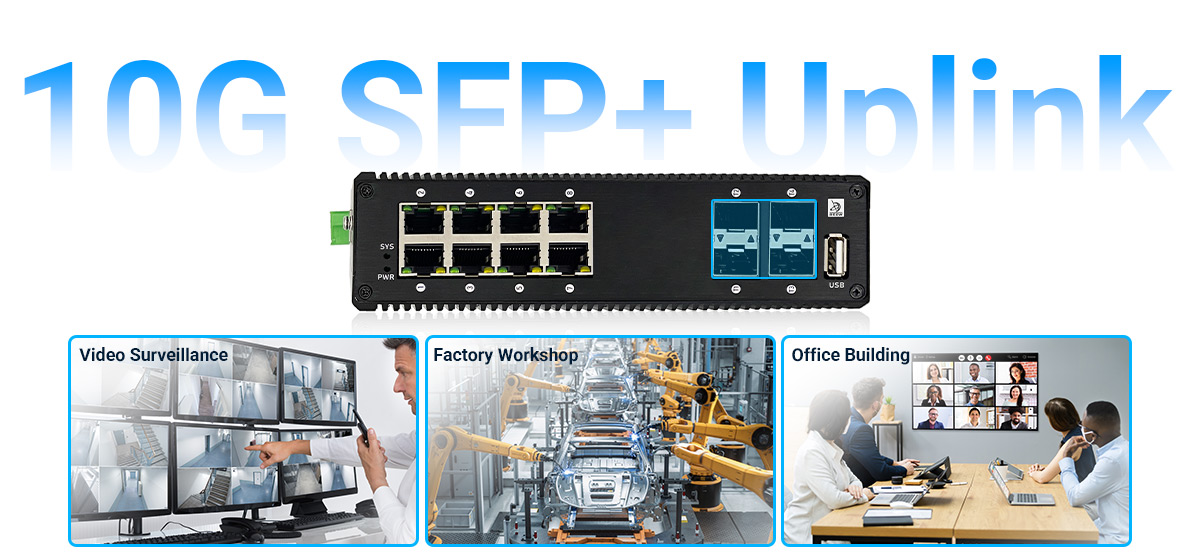

High-Speed 10G SFP+ Uplink Ports

Four 10G SFP+ uplink ports provide ultra-fast data transmission and reduce latency for heavy-traffic industrial applications. These uplinks ensure uninterrupted connections between devices and backbone networks, allowing for superior performance in real-time monitoring or large-scale data transfers. Supporting fiber and copper modules, the uplinks adapt to various deployment needs, ensuring scalability for growing network demands.

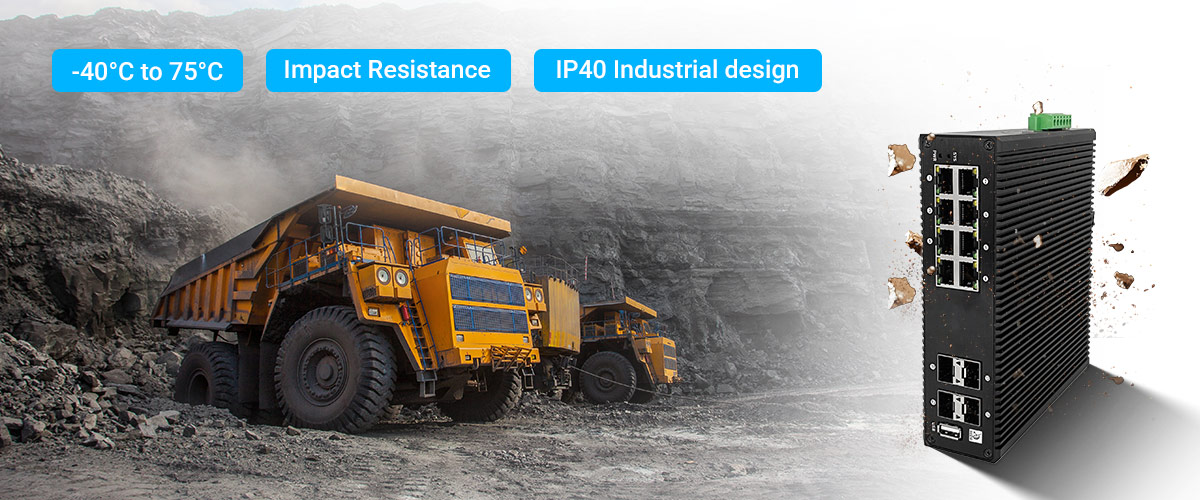

Rugged Industrial Design

The IES7511-8PGE4TF-DC features a robust metal housing and fanless design to operate reliably in harsh environments. It withstands wide temperature ranges (-40°C to 75°C) and is resistant to vibration and shock, making it suitable for demanding industrial applications such as transportation, mining, and factory automation. Its durable construction minimizes downtime, ensuring consistent network availability even in extreme conditions.



Layer 2/Layer 3 Network Management

Advanced network management capabilities include VLAN, QoS, and IGMP snooping, enabling optimized traffic flow and enhanced network security. Layer 3 static routing further simplifies network segmentation, ensuring efficient resource allocation. These features give users precise control over network configuration, making the switch a flexible and intelligent choice for industrial deployments.



Enhanced Network Security

This 8 port industrial PoE switch offers a variety of security protocols, including port security, DHCP snooping, and 802.1X authentication, to safeguard network infrastructure. By protecting against unauthorized access and potential cyber threats, it ensures safe and secure industrial operations. These features provide peace of mind for users managing critical data in high-risk environments.



Wide Voltage Input

Supporting a wide voltage input range of 48–56V DC, the switch accommodates diverse power systems. This flexibility ensures compatibility with industrial setups and enhances operational resilience. Users benefit from reduced power constraints and reliable connectivity even in environments with fluctuating or unconventional power supplies.



Intelligent PoE Management

The industrial PoE switch offers smart PoE management, including power scheduling and prioritization. It ensures optimal power allocation to essential devices, reducing power waste and preventing overloads. This feature enhances energy efficiency while maximizing device uptime, particularly for mission-critical applications like surveillance and automation.





Connectivity Solutions



Layer 3 Managed 8 Port Gigabit PoE Industrial Switch with 4-10G SFP+ Uplink Connection Solution









Layer 3 Managed 8 Port Gigabit PoE Industrial Switch with 4-10G SFP+ Uplink Connection Solution











Specification



  • Especificações técnicas :

    IE7511-8PGE4GE4TF-DC

  • Portas de cobre RJ45 10M/100M/1G :

    12

  • Portas 1G/2,5G/10G SFP+ (fibra) :

    4

  • Portas PoE/PoE+ :

    8

  • Porta do console (para configuração) :

    Yes

  • porta USB :

    Yes (for firmware and config upload/ download)

  • Botão de reset :

    Yes

  • Alimentação pela Ethernet :

    *

  • Padrão PoE :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • Tipo de fonte de alimentação PoE :

    End-span: 1/2 (+), 3/6 (-)

  • Saída de energia PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • Orçamento de energia PoE :

    120 Watts

  • Especificação de performance :

    *

  • Memória buffer de pacotes :

    12 Mb

  • Modos de encaminhamento :

    Store-and-forward

  • Largura de banda :

    128 Gbps

  • Taxa de encaminhamento de pacotes :

    77.38Mpps (64 byte packet size)

  • Tamanho do banco de dados de endereços MAC :

    16K (48-bit MAC ad-dresses)

  • Suporte para quadro Jumbo :

    12K

  • Tempo médio entre falhas :

    160,213 hours (MTBF) @ 25°C

  • Latência de cobre de 100M :

    8.314µs; 8.352µs; 8.451µs

  • Latência de cobre 1G :

    3.514µs; 3.545µs; 3.628µs

  • Latência de fibra 1G :

    2.980µs; 3.101µs; 3.179µs

  • Latência de fibra 2,5G :

    2.631µs; 2.752µs; 2.811µs

  • Latência de fibra 10G :

    2.330µs; 2.561µs; 2.7129µs

  • Serviços L2 - VLANs :

    *

  • Marcação de VLAN IEEE 802.1Q :

    Yes

  • Marcação de VLAN QinQ :

    Yes

  • VLANs baseadas em IP :

    Yes

  • VLANs baseadas em MAC :

    Yes

  • VLAN baseada em protocolo :

    Yes

  • VLAN de voz :

    Yes

  • Mapeamento de VLAN :

    Yes

  • Serviços L2 - Disponibilidade :

    *

  • Controle de tempestade :

    Yes （Broadcast, multicast, unknown unicast）

  • IEEE 802.3ad - LAGs (LACP) :

    Yes

  • IEEE802.3x :

    Yes

  • Anel (ERPS, em conformidade com G.8032) :

    Yes, Recovery time < 50ms

  • Protocolo Spanning Tree IEEE 802.1D :

    Yes

  • Protocolo Rapid Spanning Tree IEEE 802.1w :

    Yes

  • Protocolo de árvore geradora múltipla IEEE 802.1s :

    Yes

  • Relé DHCP Camada 2 :

    Yes

  • Serviços L2 - Filtragem Multicast :

    Yes

  • Espionagem IGMP (v1, v2 e v3) :

    Yes

  • Suporte para espionagem MLD (v1 e v2) :

    Yes

  • Consultador de espionagem IGMP (v2) :

    Yes

  • Consultor de espionagem MLD (v1) :

    Yes

  • Registro de VLAN multicast (MVR) :

    Yes

  • Serviços L3 - DHCP :

    *

  • Cliente DHCP :

    Yes

  • Espionagem de DHCP :

    Yes

  • Servidor DHCP :

    Yes

  • Serviços L3 - Roteamento :

    *

  • Roteamento estático IPv4 :

    100

  • Roteamento estático IPv6 :

    100

  • Roteamento VLAN :

    Yes

  • RIP V1/V2 :

    Yes

  • OSPF V2 :

    Yes

  • Número de interfaces IP VLAN :

    Yes

  • Roteamento de política :

    Yes

  • VRRP :

    Yes

  • Link de agregação :

    *

  • LAG manual :

    Yes

  • Nº de GAL / Nº de membros em cada GAL :

    8 LAGs with max 8 members in each LAG

  • Serviços de monitoramento e descoberta de rede :

    *

  • 802.1ab LLDP :

    Yes

  • SNMP :

    v1, v2c, v3

  • Grupo RMON 1,2,3,9 :

    Yes

  • Segurança de rede :

    Yes

  • IEEE802.1x :

    Yes

  • Contabilidade RADIUS :

    Yes

  • Listas de controle de acesso (ACLs) :

    Yes

  • ACLs baseadas em IP (IPv4 e IPv6) :

    L2 / L3 / L4

  • ACLs baseadas em MAC :

    Yes

  • ACLs baseadas em TCP/UDP :

    Yes

  • Controlar entradas estáticas de MAC# :

    48

  • Segurança baseada em porta por endereços MAC bloqueados :

    Yes

  • Inspeção ARP dinâmica :

    Yes

  • Proteção DoS :

    Yes

  • Prevenção de ataques DoS :

    Yes

  • Proteção contra tempestades de rede, DoS :

    Yes

  • Qualidade de Serviço (QoS) :

    *

  • Limitação de taxa baseada em porta :

    Yes ingress and egress

  • QoS baseado em porta :

    Yes

  • Suporte para campos IPv6 :

    Yes

  • QoS do DiffServ :

    Yes ingress

  • COS IEEE 802.1p :

    Yes

  • MAC e IP de destino :

    Yes

  • DSCP IPv4 e v6 :

    Yes

  • Baseado em TCP/UDP :

    Yes

  • Round Robin Ponderado (WRR) :

    Yes

  • Tecnologia de fila de prioridade estrita :

    Yes

  • Protocolos de rede IEEE :

    *

  • Protocolos :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

  • Protocolos 2 :

    • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning T

  • Gerenciamento, monitoramento e solução de problemas :

    *

  • Gerenciamento de senha :

    Yes

  • Controle de acesso via RADIUS e TACACS+ :

    Yes

  • Gerenciamento IPv6 :

    Yes

  • SNMP v1/v2c/v3 :

    Yes

  • Espelhamento de porta :

    Yes ingress and egress

  • Espelhamento de porta muitos para um :

    16

  • Utilitário de teste de cabo :

    Yes

  • Acesso baseado na Web TLS/HTTPS (versão) :

    Yes (v1.2)

  • Transferências de arquivos (uploads, downloads) :

    TFTP / HTTP

  • Upload/download HTTP (firmware) :

    Yes

  • Syslog (RFC 3164) :

    Yes

  • LEDs :

    Yes

  • Por porta :

    Speed, Link, Activity; PoE in different mode

  • Por dispositivo :

    Power

  • Especificações Físicas :

    *

  • Dimensões (Largura * Profundidade * Altura) :

    170 x 148 x 48 mm (6.69 x 5.83 x 1.89 in)

  • Peso :

    1.2 kg (2.65 lb)

  • Proteção de casca :

    P40 high-strength aluminum case

  • Requerimentos poderosos :

    DC 48~56V, redundant power with reverse polarity protection

  • Consumo de energia :

    120W

  • poder maximo :

    12W

  • Consumo de energia ocioso :

    9W

  • Ethernet com eficiência energética (EEE) :

    Yes (deactivated by default)

  • Fã :

    Fanless

  • Especificações Ambientais :

    *

  • Temperatura de operação :

    -40° to 85°C (-40° to 185°F)

  • Umidade operacional :

    95% maximum relative humidity (RH), non-condensing

  • Altitude de Operação :

    10,000 ft (3,000 m) maximum

  • Temperatura de armazenamento :

    -40° to 85°C (-40° to 185°F)

  • Umidade de armazenamento (relativa) :

    95% maximum relative humidity, non-condensing

  • Altitude de armazenamento :

    10,000 ft (3,000 m) maximum

  • Padrão Executivo e Proteção :

    *

  • Proteção contra raios :

    *

  • IEC61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Parte 15/CISPR22 (EN55022) :

    Class B

  • CEI 61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (campo magnético pulsado) :

    1000A/m

  • IEC61000-4-10 (oscilação amortecida) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (onda de choque) :

    CM 2.5kV, DM 1kV

  • IEC61000-4-4(EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (transmissão em modo comum) :

    30V, 300V, 1s

  • IEC61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (transmissão de radiofrequência) :

    10V(150kHz~80MHz)

  • IEC61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (sobretensão): Cabo de alimentação :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Propriedades mecânicas :

    *

  • IEC60068-2-6 :

    Anti Vibration

  • IEC60068-2-32 :

    Free Fall

  • IEC60068-2-27 :

    Anti Shock

  • Emissões Eletromagnéticas e Imunidade :

    *

  • Certificações :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Segurança :

    *

  • Certificações de segurança :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantia e Suporte :

    *

  • Garantia limitada de hardware :

    Limited Lifetime*

  • Suporte Técnico via Telefone e E-mail* :

    Limited Lifetime*

  • Suporte técnico por bate-papo on-line 24 horas por dia, 7 dias por semana :

    Limited Lifetime*

  • conteúdo do pacote :

    *

  • Todos os modelos :

    Smart Industrial Switch ； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Tipo de Negócio :

    Industrial

  • Bandido :

    1G+10G

  • Mais filtros :

    L3 Managed
TAGS QUENTES : Switch PoE industrial de camada 3 Switch PoE industrial gerenciado L3 Interruptor POE robusto L3 Interruptor PoE industrial 10G SFP+ Switch POE gerenciado em trilho DIN L3 Switch Industrial de Camada 3 PoE de 8 Portas
Deixe um recado
Se você está interessado em nossos produtos e deseja saber mais detalhes, deixe uma mensagem aqui, responderemos o mais breve possível.
enviar

Deixe um recado

Deixe um recado
Se você está interessado em nossos produtos e deseja saber mais detalhes, deixe uma mensagem aqui, responderemos o mais breve possível.
enviar

Lar

Produtos

Whatsapp

Contate-nos
