IES7521-16PGE4GC-4BT-AC, 16 Port Gigabit Managed Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink,4 PoE++ Port(90W) and 12 PoE+ Ports(30W),500W power budget
Physical Port
Power over Ethernet
Switching
Hardware
Lightning Protection
Mechanical Properties
|
Layer 2 Features
Security
Management
|
Features

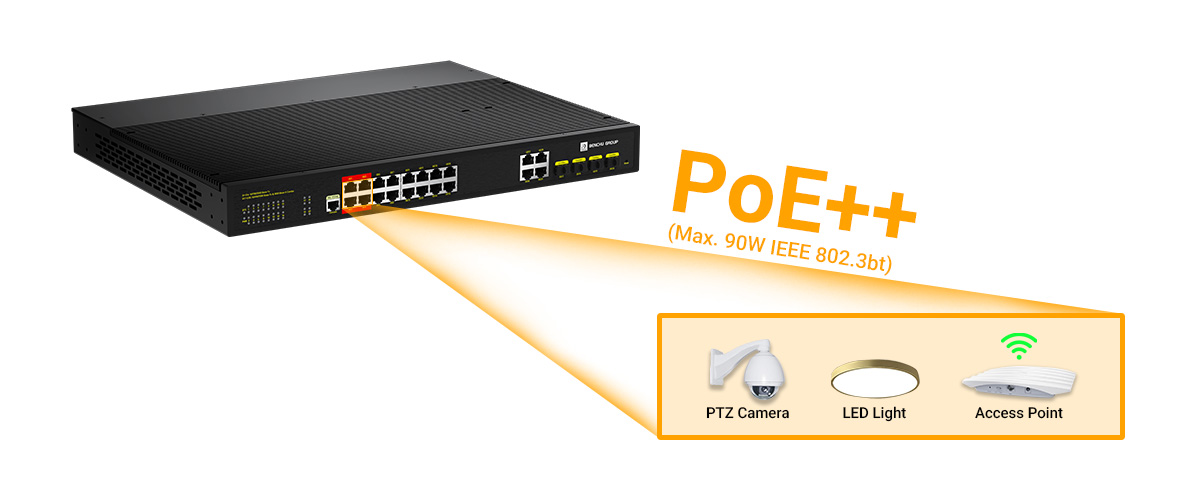

High Power PoE++ Support (90W)
This 16 port managed industrial PoE++ switch features 4 PoE++ (90W) ports, delivering ultra-high power suitable for demanding industrial applications such as PTZ cameras, wireless access points, and IoT devices. This capability ensures seamless operation of power-intensive devices while reducing the need for separate power infrastructure. The inclusion of PoE++ ensures flexibility and scalability for modern industrial networks, empowering businesses to build efficient and future-proof systems.
Comprehensive Power Budget of 500W
Equipped with a robust 500W power budget, the IES7521-16PGE4GC-4BT-AC supports simultaneous operation of 4 PoE++ and 12 PoE+ devices. This extensive capacity ensures reliable performance, even in power-demanding environments. The centralized power supply reduces cabling costs and simplifies deployment, making it ideal for industrial automation, smart cities, and advanced surveillance systems.

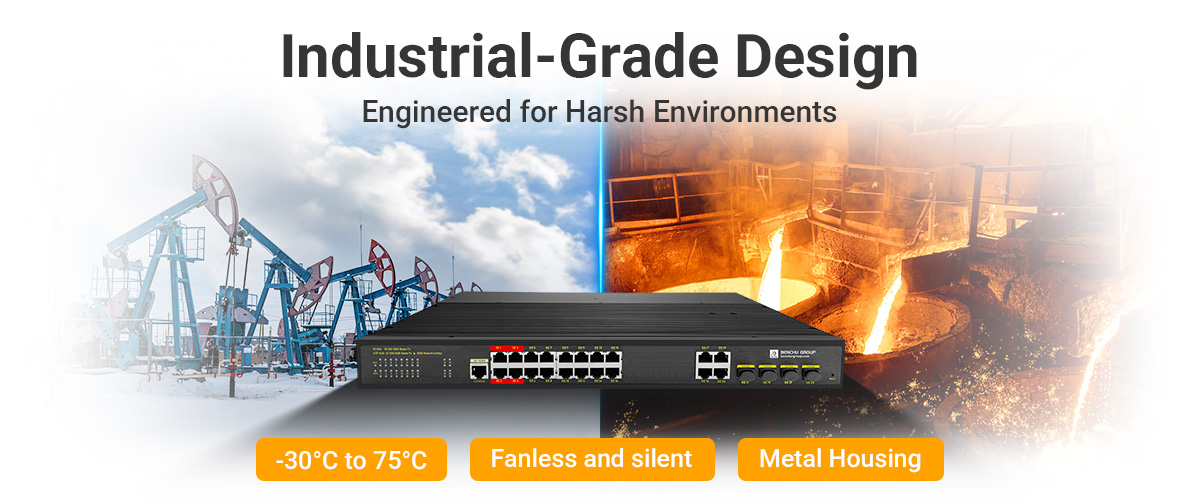

Industrial-Grade Design (-30°C to 75°C)
Engineered for harsh environments, the IES7521-16PGE4GC-4BT-AC operates reliably within a wide temperature range of -30°C to 75°C. Its rugged design ensures uninterrupted connectivity in extreme industrial settings, such as factories, outdoor installations, and oil and gas facilities. With this robust build, the switch guarantees long-lasting performance and resilience under challenging conditions.
ESD Protection (8KV)
The IES7521-16PGE4GC-4BT-AC incorporates advanced ESD (Electrostatic Discharge) protection of up to 8KV, safeguarding sensitive components from electrical surges. This feature enhances reliability and minimizes downtime, making it suitable for areas prone to static electricity or electrical noise. The strong ESD shielding ensures stable and secure operations, critical for mission-critical applications.
L2+ Managed Features
The advanced L2+ management capabilities include VLAN, QoS, IGMP Snooping, and Static Routing, optimizing network performance and traffic control. These features allow for enhanced network segmentation, better bandwidth utilization, and more efficient communication between devices. The industrial PoE++ switch’s intelligent management functionality empowers administrators to fine-tune and secure networks with ease.

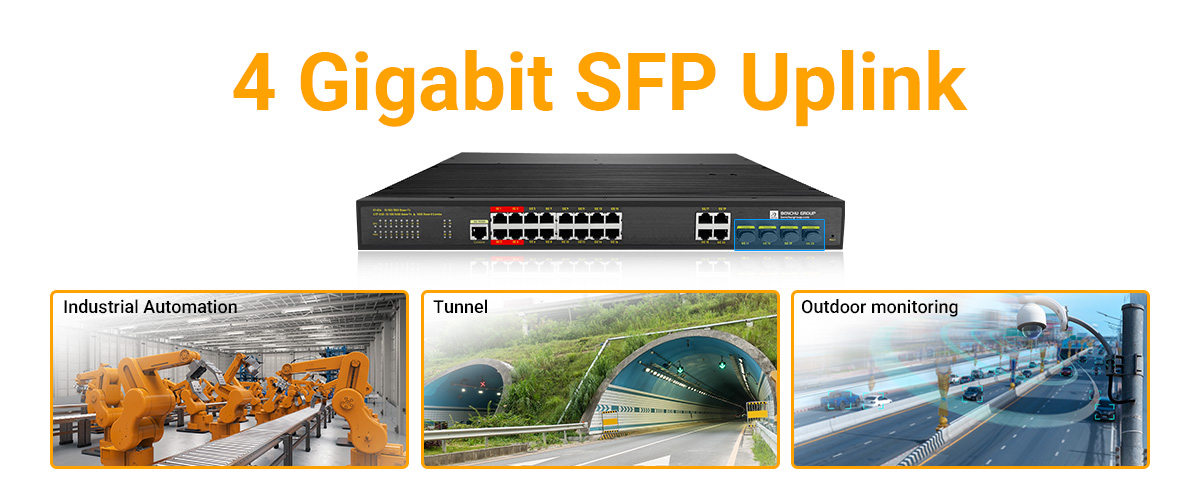

Gigabit Connectivity with 4 RJ45/SFP Combo Uplinks
This 16 port managed industrial PoE++ switch provides 4 Gigabit RJ45/SFP combo uplink ports, enabling flexible, high-speed network expansion. The combination of copper and fiber connectivity ensures compatibility with various devices and extends network reach. This feature offers adaptability and reliability for industrial deployments requiring seamless integration and superior performance.
16-Port Gigabit Managed Switch with Advanced Security
With 20 managed Gigabit ports, the switch ensures high-speed data transmission while supporting advanced security protocols like port security, ACLs, and SSH. This comprehensive management enhances network reliability and protects against unauthorized access. Designed for critical industrial operations, it ensures secure and uninterrupted data flow in sensitive environments.
Connectivity Solutions
16 port Gigabit Managed Industrial PoE++ switch with 4 Gigabit RJ45/SFP Uplink Connectivity Solution
Specification
Especificações técnicas :
IE7521-16PGE4GC-4BT-ACPortas de cobre RJ45 10M/100M/1G :
16Combinação Gigabit R4J5 e SFP :
4Portas PoE/PoE+ :
12 (Up to 30W per port)Portas PoE/PoE+/PoE++/UPoE+ :
4 (Up to 90W per port)Porta do console (para configuração) :
YesBotão de reset :
YesAlimentação pela Ethernet :
*Padrão PoE :
IEEE 802.3bt Power over Ethernet Plus Plus /PSE;Backward compatible IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetTipo de fonte de alimentação PoE :
End-span: 1/2/4/5 (+), 3/6/7/8 (-)Saída de energia PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3at)Orçamento de energia PoE :
470WEspecificação de performance :
*Memória buffer de pacotes :
8.2 MbModos de encaminhamento :
Store-and-forwardLargura de banda :
256 GbpsTaxa de encaminhamento de pacotes :
35.72Mpps (64 byte packet size)Tamanho do banco de dados de endereços MAC :
8K (48-bit MAC ad-dresses)Suporte para quadro Jumbo :
9KServiços L2 - VLANs :
*Marcação de VLAN IEEE 802.1Q :
YesMarcação de VLAN QinQ :
YesVLANs baseadas em IP :
YesVLANs baseadas em MAC :
YesVLAN baseada em protocolo :
YesVLAN de voz :
YesMapeamento de VLAN :
YesServiços L2 - Disponibilidade :
*Controle de tempestade :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAGs (LACP) :
YesIEEE802.3x :
YesAnel (ERPS, em conformidade com G.8032) :
Yes, Recovery time < 50msProtocolo Spanning Tree IEEE 802.1D :
YesProtocolo Rapid Spanning Tree IEEE 802.1w :
YesProtocolo de árvore geradora múltipla IEEE 802.1s :
YesRelé DHCP Camada 2 :
YesServiços L2 - Filtragem Multicast :
YesEspionagem IGMP (v1, v2 e v3) :
YesSuporte para espionagem MLD (v1 e v2) :
YesConsultador de espionagem IGMP (v2) :
YesConsultor de espionagem MLD (v1) :
YesRegistro de VLAN multicast (MVR) :
YesServiços L3 - Roteamento :
*Roteamento estático IPv4 :
100Roteamento estático IPv6 :
100Link de agregação :
*LAG manual :
YesNº de GAL / Nº de membros em cada GAL :
8 LAGs with max 8 members in each LAGServiços de monitoramento e descoberta de rede :
*802.1ab LLDP :
YesSNMP :
v1, v2c, v3Grupo RMON 1,2,3,9 :
YesSegurança de rede :
YesIEEE802.1x :
YesContabilidade RADIUS :
YesListas de controle de acesso (ACLs) :
YesACLs baseadas em IP (IPv4 e IPv6) :
L2 / L3 / L4ACLs baseadas em MAC :
YesACLs baseadas em TCP/UDP :
YesControlar entradas estáticas de MAC# :
48Segurança baseada em porta por endereços MAC bloqueados :
YesInspeção ARP dinâmica :
YesProteção DoS :
YesPrevenção de ataques DoS :
YesProteção contra tempestades de rede, DoS :
YesQualidade de Serviço (QoS) :
*Limitação de taxa baseada em porta :
Yes ingress and egressQoS baseado em porta :
YesSuporte para campos IPv6 :
YesQoS do DiffServ :
Yes ingressCOS IEEE 802.1p :
YesMAC e IP de destino :
YesDSCP IPv4 e v6 :
YesBaseado em TCP/UDP :
YesRound Robin Ponderado (WRR) :
YesTecnologia de fila de prioridade estrita :
YesProtocolos de rede IEEE :
*Protocolos :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXProtocolos 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning TGerenciamento, monitoramento e solução de problemas :
*Gerenciamento de senha :
YesControle de acesso via RADIUS e TACACS+ :
YesGerenciamento IPv6 :
YesSNMP v1/v2c/v3 :
YesEspelhamento de porta :
Yes ingress and egressEspelhamento de porta muitos para um :
6Utilitário de teste de cabo :
YesAcesso baseado na Web TLS/HTTPS (versão) :
Yes (v1.2)Transferências de arquivos (uploads, downloads) :
TFTP / HTTPUpload/download HTTP (firmware) :
YesSyslog (RFC 3164) :
YesLEDs :
YesPor porta :
Speed, Link, Activity; PoE in different modePor dispositivo :
PowerEspecificações Físicas :
*Dimensões (Largura * Profundidade * Altura) :
440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)Peso :
<6.6 kg (11.55 lb)Consumo de energia :
500W (when all ports used, line-rate traffic and max PoE)poder maximo :
18W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Consumo de energia ocioso :
11W (all ports link-down standby) (Watts)Ethernet com eficiência energética (EEE) :
Yes (deactivated by default)Fã :
FanlessEspecificações Ambientais :
*Temperatura de operação :
-40° to 85°C (-40° to 185°F)Umidade operacional :
95% maximum relative humidity (RH), non-condensingAltitude de Operação :
10,000 ft (3,000 m) maximumTemperatura de armazenamento :
-40° to 85°C (-40° to 185°F)Umidade de armazenamento (relativa) :
95% maximum relative humidity, non-condensingAltitude de armazenamento :
10,000 ft (3,000 m) maximumPadrão Executivo e Proteção :
*Proteção contra raios :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Parte 15/CISPR22 (EN55022) :
Class BCEI 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (campo magnético pulsado) :
1000A/mIEC61000-4-10 (oscilação amortecida) :
30A/m, 1MHzIEC61000-4-12/18 (onda de choque) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (transmissão em modo comum) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (transmissão de radiofrequência) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (sobretensão): Cabo de alimentação :
CM±4kV/ DM±2kV, Data cable: ±4kVPropriedades mecânicas :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockEmissões Eletromagnéticas e Imunidade :
*Certificações :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Segurança :
*Certificações de segurança :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Garantia e Suporte :
*Garantia limitada de hardware :
Limited Lifetime*Suporte Técnico via Telefone e E-mail* :
Limited Lifetime*Suporte técnico por bate-papo on-line 24 horas por dia, 7 dias por semana :
Limited Lifetime*conteúdo do pacote :
*Todos os modelos :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideTipo de Negócio :
IndustrialBandido :
1GMais filtros :
L2+ Managed
