Key Product Features & Technical Advantages

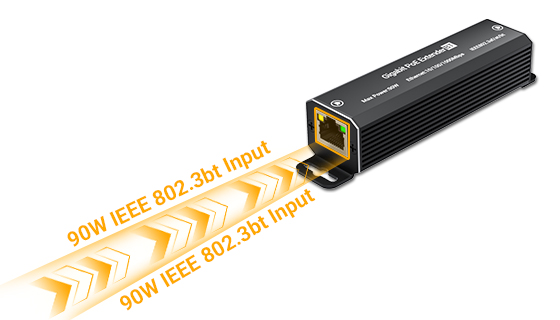

90W IEEE 802.3bt Input
Accepts up to 90W continuous PoE++ wattage via its Gigabit uplink under IEEE 802.3bt Type 4 standard, powering both internal boosting circuits and high-draw downstream loads.
72W Guaranteed @ 200m
Engineered with heavy-copper PCBs to minimize line resistance, delivering up to 85W max local output and guaranteeing 72W actual load power at a 100-meter extended end.

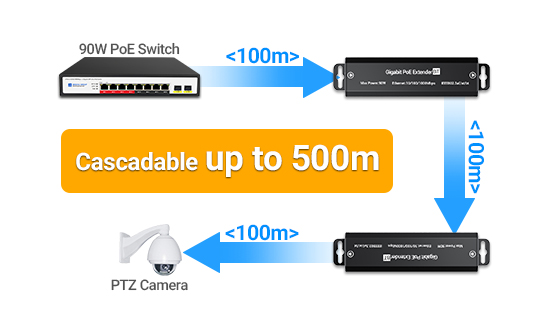

Multi-Hop Longspan Reach
Supports inline multi-stage daisy-chaining to push Gigabit data and PoE power beyond the 100m copper barrier to 200m, 300m, or further without line degradation.

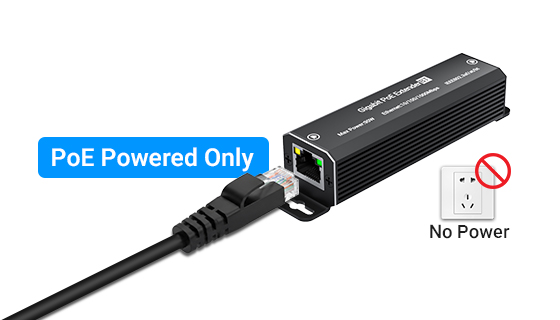

Zero AC Mains Wiring
Operates as a 100% inline-powered extender hub. Totally eliminates costly field electrical conduit trenching, AC outlet drops, and external power adapters.

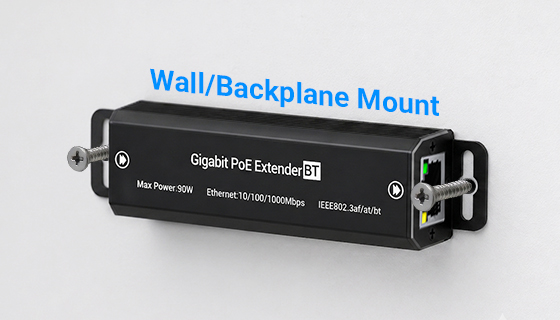

Wall-Mount Heavy Brackets
Outfitted with dual heavy-duty side wall-mount flanges, enabling secure, anti-vibration screw-fastening directly onto flat walls, pole plates, or outdoor waterproof box backplanes.
Wire-Speed Gigabit Chip
Powered by enterprise-grade switching controllers, guaranteeing non-blocking 1000Mbps full-duplex packet forwarding with zero latency and zero frame loss.
-40°C to 75°C Endurance
Built using pure industrial-grade semiconductor components, sustaining continuous 24/7 mission-critical operations under severe sub-zero cold or extreme desert heat.

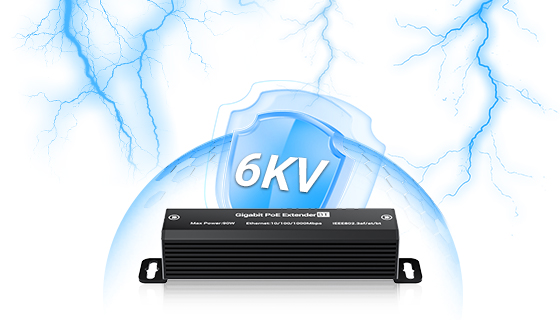

6KV Surge Protection
Equipped with high-capacity TVS surge suppressors providing 6KV surge protection and ESD immunity on RJ45 ports to shield connected endpoints against outdoor lightning strikes.
Industrial 90W PoE Extension & Longspan Connectivity Solutions
Zero-AC-grid inline power boosting and non-blocking wire-speed Gigabit network extension for high-draw edge devices.

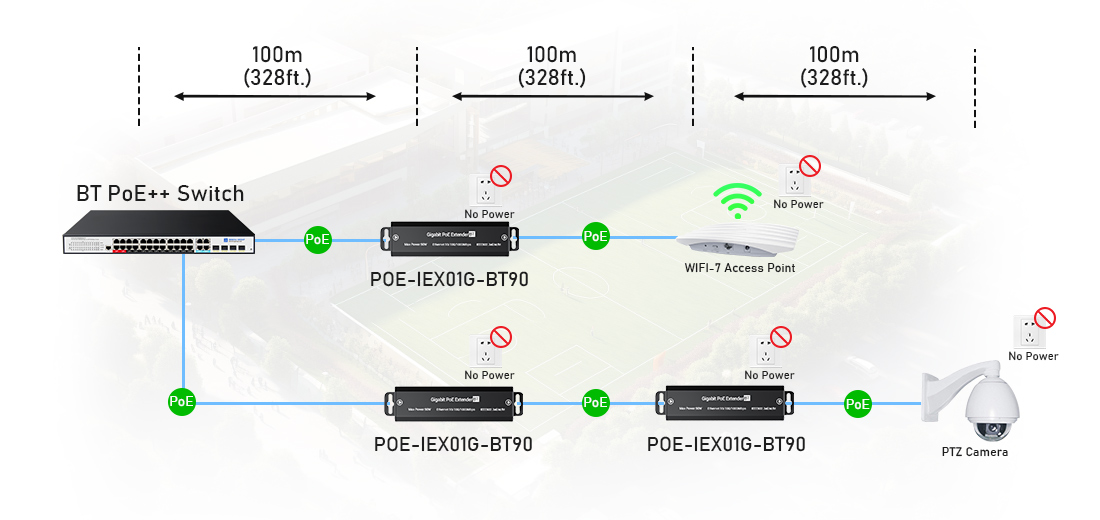

Inline Longspan Network Extension Scenarios
- 1. High-Power Perimeter PTZ & Thermal Camera Longspan Deploy heavy-duty PTZ speed domes or infrared thermal cameras over 200m away from the central switch. Installed inline at the 100m midpoint using its flat wall-mount flanges, this industrial 90W repeater draws incoming 802.3bt power to boost Gigabit data and maintain a steady 65W guaranteed payload at the far end—preventing camera reboots and heater failures without laying local AC power lines.
- 2. Multi-Hop Daisy-Chaining for Linear Infrastructure Extend network reach across extended linear distances such as highway gantries, perimeter fences, or railway corridors. By daisy-chaining two or three units in series, you can seamlessly push wire-speed Gigabit backhaul to 300m or 400m remote endpoints. The rugged IP40 casing and -40°C to 75°C tolerance ensure 24/7 unmanaged operation under harsh outdoor conditions.
- 3. Zero-Grid Outdoor 5G CPE & Wi-Fi 7 AP Backhaul Supply clean 802.3bt power and 1000Mbps full-duplex data backhaul to high-power Wi-Fi 7 access points or 5G cellular CPEs mounted high on lighting towers or smart poles. Tightly screw-mounted onto flat cabinet backplanes or pole plates, it withstands up to 6KV lightning surges and electrical noise, eliminating costly high-voltage AC conduit drilling entirely.
Related Products & Selection Guide
| Models |
 Outdoor PoE Extender
IP66 Waterproof
|
 1 to 2 PoE Extender
Aluminum shell
|
 1 to 4 PoE Extender
Enterprise-grade
|
 1 to 4 PoE Extender
Industrial-grade
|
 Outdoor PoE Extender BT 90W
High Power
|
|---|---|---|---|---|---|
| Ports | 1* PoE+ in & 1*PoE+ out | 1* PoE+ in & 2*PoE+ out | 1* PoE++ in & 4*PoE+ out | 1* PoE++ in & 4*PoE+ out | 1* PoE++ in & 1*PoE++ out |
| Max PoE Power | 30W (802.3at) | 30W (802.3at) | In: 90W (802.3bt), Out: 30W (802.3at) | In: 90W (802.3bt), Out: 30W (802.3at) | 90W (802.3bt) |
| Extension Distance | +100m (Total 200m) | +100m (Total 200m) | +100m (Total 200m) | +100m (Total 200m) | +100m (Cascadable to 500m) |
| Ethernet Speed | 10/100 Mbps | 10/100 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Housing / Protection | ABS Plastic / IP65 | Metal / IP40 | Metal Alloy | Aluminum Alloy / IP40 | Aluminum Alloy / IP66 |
| Operating Temp | -30°C to +75°C | -20°C to +55°C | -20°C to +55°C | -40°C to +75°C | -40°C to +75°C |
| Surge / ESD Protection | 4KV / 8KV | 4KV / 8KV | 4KV / 8KV | 6KV / 15KV | 6KV / 15KV |
| Action | View Details | View Details | View Details | View Details | View Details |
Industrial 90W Gigabit PoE Extender & Repeater OEM Manufacturer
Specializing in high-power PoE extension hardware, we manufacture industrial-grade IEEE 802.3bt 90W Ultra PoE extenders, multi-port repeaters, and outdoor IP67 pass-through nodes. Built to extend Ethernet power and data over long distances without local power supplies, our hardware complies with global standards (CE, FCC, RoHS) for critical infrastructure, IP surveillance, and smart city deployments.
Custom OEM / ODM Solutions for Extenders & Repeaters
Start Your OEM/Wholesale Project
Looking for custom PoE extenders or wholesale supply for engineering projects? Connect directly with our technical team for immediate quotes and sample evaluation.
⚡ Factory Direct Support: Guaranteed Response Within 24 Hours
