16 Port Gigabit PoE++ Switch with 4 Gigabit RJ45/SFP Combo, SP5220-16PGE4GC-4BT

16 Port Gigabit PoE++ Switch
16 Port Gigabit PoE++ Network Switch
16 Port Gigabit Unmanaged PoE++ Switch
Rack Mout 16 Port Gigabit PoE++ Switch

16 Port Gigabit PoE++ Switch with 4 Gigabit RJ45/SFP Combo, SP5220-16PGE4GC-4BT

Pergunte agora

Designed for IP Camera/Wireless Access Point/VOIP Telephone

Product Highlights
    • 4-10/100/1000Mbps RJ45 ports with PoE++(Port 1-4)
    • 12-10/100/1000Mbps RJ45 ports with PoE+(Port 5-16)
    • 4-10/100/1000Mbps RJ45 ports and 4-1.25Gbps mini-GBIC SFP interface combo
    • Complies with IEEE 802.3af/at/bt Power over Ethernet
    • Supports PoE power up to 90 watts for PoE port 1 to 4，
    • Supports PoE power up to 30 watts for each PoE port 5 to 16
    • 470-watt PoE budget, total power budget 500W
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection
    • Backplane bandwidth 64Gbps，Packet forwarding rate 47.62Mpps，MAC address 16k
    • 19-inch Rack-Mount size, 1U height，Internal AC power supply

16 port POE++ switch

Overview



SP5220-16PGE4GC-4BT,  16 Ports Gigabit PoE++ Switch, with 4 Gigabit RJ45/SFP Combo,4-PoE++ Ports and 16-PoE+ Ports, 500W Power Budget, Rack-Mount

The BENCHU SP5220-16PGE4GC-4BT is a robust 16-port Gigabit unmanaged PoE++ switch, purpose-built to deliver high power and reliable connectivity for modern networking needs. With 4 Gigabit RJ45/SFP combo uplink ports, the switch offers flexible options for network expansion and seamless data transmission. Equipped with 4 PoE++ (90W) ports and 12 PoE+ (30W) ports, it supports a total power budget of 500W, ideal for powering high-demand devices such as PTZ cameras, wireless access points, and other PoE-enabled equipment.



This PoE++ switch excels in simplifying deployment by eliminating the need for additional power sources for connected devices. Its plug-and-play functionality ensures easy integration without technical expertise, making it a reliable solution for surveillance systems, smart office setups, and IoT networks.



By choosing the SP5220-16PGE4GC-4BT, users benefit from cost savings through reduced cabling and infrastructure needs. The high power capacity ensures uninterrupted performance for demanding applications, while the sturdy design enhances durability in diverse environments. This switch embodies BENCHU’s commitment to quality and innovation, offering exceptional value by optimizing power, connectivity, and scalability for business-critical networks.

  • Physical Port
    •  4-10/100/1000Mbps Gigabit Ethernet ports with PoE++ (Ports 1-4)
    •  12-10/100/1000Mbps Gigabit Ethernet ports with PoE+ (Ports 5-16)
    •  4-10/100/1000Mbps Gigabit Ethernet port and 4-1.25Gbps mini-GBIC SFP interface combo

    Power over Ethernet
    •  Complies with IEEE 802.3af/at/bt Power over Ethernet
    •  Supports PoE Power up to 90 watts for PoE port (Port 1-4 )
    •  Supports PoE Power up to 30 watts for PoE port (Port 5-16 )
    •  All power up to 500W，470W for PoE budget.
    •  Auto detects powered device (PD)
    •  Circuit protection prevents power interference between ports
    •  Remote power feeding up to 100m in standard mode
  • Switching
    •  Solid performance with non-blocking architecture
    •  64Gbps Backplane bandwidth, 35.72Mpps Switch Throughput，9216 bytes Jumbo Frame
    •  supporting 8K MAC addresses
    •  Automatic address learning and address aging
    •  Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
    •  Flow control for full duplex operation and back pressure for half duplex operation
    •  Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Hardware
    •  High-strength metal casing
    •  19-inch Rack-Mount, 1U height





Features

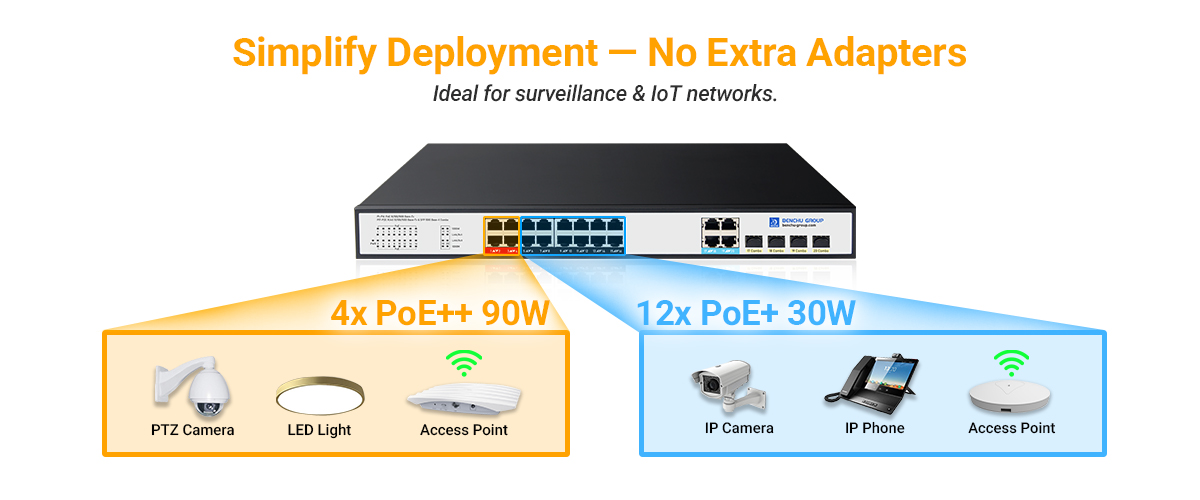

High PoE Power Capacity

The SP5220-16PGE4GC-4BT switch provides an impressive 500W total PoE budget, supporting up to 4 PoE++ (90W) ports and 12 PoE+ (30W) ports. This capacity enables it to power high-demand devices like PTZ cameras, wireless access points, and LED displays without additional adapters. Its high power output ensures seamless operations for power-intensive applications, reducing the need for supplementary power sources and simplifying deployment, especially in surveillance and IoT networks.



Flexible Uplink Options

Featuring 4 Gigabit RJ45/SFP combo uplink ports, the SP5220-16PGE4GC-4BT offers flexible connectivity and scalability. Users can choose between copper or fiber uplinks to meet specific network requirements, ensuring reliable data transmission across longer distances. This versatility is ideal for businesses or industrial environments needing high-speed and uninterrupted communication between network devices, making the switch suitable for expanding network infrastructures.



6KV ESD Protection

Designed with 6KV Electrostatic Discharge (ESD) protection, the SP5220-16PGE4GC-4BT ensures durability and reliability even in harsh industrial environments. This feature safeguards connected devices from power surges and static electricity, enhancing operational stability. The ESD protection makes the switch ideal for outdoor or industrial applications, reducing downtime and potential damage to expensive equipment in unpredictable conditions.



Unmanaged Plug-and-Play Design

The switch's unmanaged design offers hassle-free installation with plug-and-play functionality, requiring no configuration. This simplicity reduces setup time, making it perfect for non-technical users or rapid deployment projects. Despite its simplicity, the SP5220-16PGE4GC-4BT delivers robust performance, ideal for surveillance systems, small-to-medium businesses, and remote monitoring networks that demand quick and reliable connectivity.



Wide Application Compatibility

With support for both PoE+ (IEEE 802.3af/at) and PoE++ (IEEE 802.3bt) standards, this PoE++ switch is highly compatible with a wide range of devices, including high-definition IP cameras, VoIP phones, and IoT devices. Its versatility ensures seamless integration into existing setups and supports next-generation PoE applications, making it a future-ready solution for advanced networking needs.



Enhanced Power Efficiency

The SP5220-16PGE4GC-4BT is engineered to optimize power usage, delivering only the necessary power to connected devices. This energy-efficient operation reduces electricity costs and minimizes heat generation, ensuring a more sustainable and eco-friendly network solution. Its efficiency also helps maintain the longevity of both the switch and connected devices, offering cost-effective performance for businesses and industries alike.





Connectivity Solutions



  • 16 Port Gigabit PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink of Connectivity Solution









Specificatiions



  • Especificações técnicas :

    SP5220-16PGE4GC-4BT

  • Portas de cobre RJ45 10M/100M/1G :

    16

  • Combinação Gigabit R4J5 e SFP :

    4

  • Portas PoE/PoE+ :

    12

  • Portas PoE/PoE+/PoE++/UPoE+ :

    4

  • Alimentação pela Ethernet :

    *

  • Padrão PoE :

    IEEE 802.3bt Power over Ethernet Plus Plus/PSE;Backward compatible with IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over Ethernet

  • Tipo de fonte de alimentação PoE :

    End-span: 1/2/4/5 (+), 3/6/7/8 (-)

  • Saída de energia PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at); Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)

  • Orçamento de energia PoE :

    470 Watts (all PoE ports use, max PoE out)

  • Especificação de performance :

    *

  • Memória buffer de pacotes :

    4.1 Mb

  • Modos de encaminhamento :

    Store-and-forward

  • Largura de banda :

    64 Gbps

  • Taxa de encaminhamento de pacotes :

    35.72Mpps

  • Tamanho do banco de dados de endereços MAC :

    8K

  • Suporte para quadro Jumbo :

    Up to 9K packet size

  • Tempo médio entre falhas :

    137,116 hours (MTBF) @ 25°C

  • Latência de cobre de 100M :

    8.311µs; 8.413µs; 8.452µs (64-byte; 1518-byte; 9216-byte frames)

  • Latência de cobre 1G :

    3.416µs; 3.546µs; 3.623µs (64-byte; 1518-byte; 9216-byte frames)

  • Latência de fibra 1G :

    2.980µs; 3.112µs; 3.189µs (64-byte; 1518-byte; 9216-byte frames)

  • Protocolos de rede IEEE :

    *

  • Protocolos :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX• IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3at PoE++ • IEEE 802.3az (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Monitoramento :

    *

  • LEDs :

    Yes

  • Por porta :

    Speed, Link, Activity; PoE in different mode

  • Por dispositivo :

    Power

  • Especificações Físicas :

    *

  • Dimensões (Largura * Profundidade * Altura) :

    440 x 290 x 44.5 mm (17.32 x 11.42 x 1.75 in)

  • Peso :

    4.2 kg (9.26 lb)

  • Consumo de energia :

    500W (when all ports used, line-rate traffic and max PoE)

  • poder maximo :

    22W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Consumo de energia ocioso :

    17W (all ports link-down standby) (Watts)

  • Ethernet com eficiência energética (EEE) :

    Yes (deactivated by default)

  • Fã :

    2 Fans

  • Especificações Ambientais :

    *

  • Temperatura de operação :

    -20° to 50°C (-4° to 131°F)

  • Umidade operacional :

    90% maximum relative humidity (RH), non-condensing

  • Altitude de Operação :

    10,000 ft (3,000 m) maximum

  • Temperatura de armazenamento :

    –20° to 70°C (– 4° to 158°F)

  • Umidade de armazenamento (relativa) :

    95% maximum relative humidity, non-condensing

  • Altitude de armazenamento :

    10,000 ft (3,000 m) maximum

  • Emissões Eletromagnéticas e Imunidade :

    *

  • Certificações :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Segurança :

    *

  • Certificações de segurança :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005； (ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantia e Suporte :

    *

  • Garantia limitada de hardware :

    Limited Lifetime*

  • Suporte Técnico via Telefone e E-mail* :

    Limited Lifetime*

  • Suporte técnico por bate-papo on-line 24 horas por dia, 7 dias por semana :

    Limited Lifetime*

  • conteúdo do pacote :

    *

  • Todos os modelos :

    Smart Switch； AC Power cord with C13 connector (localized to region of sale)； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Tipo de Negócio :

    Commercial

  • Bandido :

    1G

  • Mais filtros :

    Unmanaged
