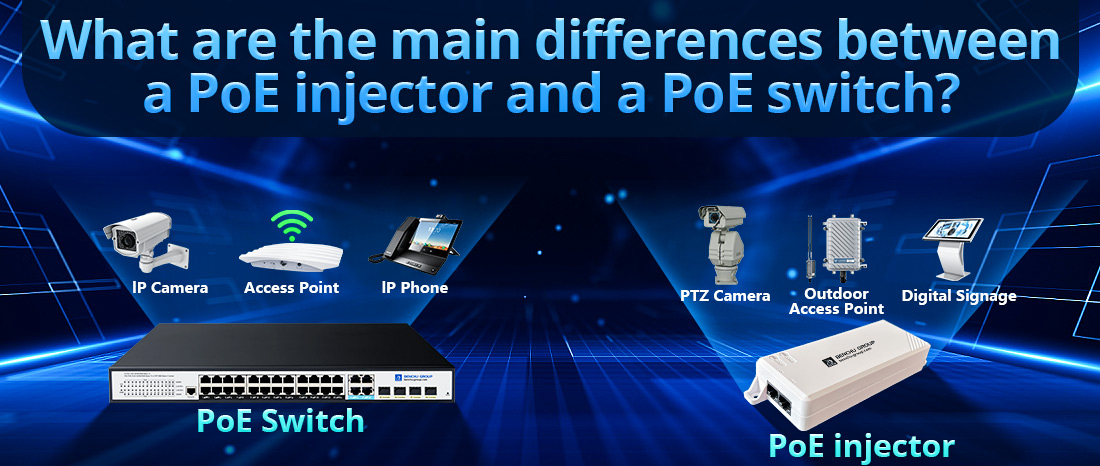

What are the main differences between a PoE injector and a PoE switch?

Main Differences Between a PoE Injector and a PoE Switch

While both PoE injectors and PoE switches serve the purpose of delivering Power over Ethernet (PoE) to network devices, they differ significantly in terms of functionality, scalability, complexity, and application. Understanding these differences is crucial for choosing the right solution based on specific networking needs. Below is a detailed comparison between a PoE injector and a PoE switch:

1. Functionality and Purpose

PoE Injector:

--- Main Role: A PoE injector provides PoE power to a single Ethernet cable running between a network device (like an IP camera or wireless access point) and a non-PoE switch or router.

--- Operation: It injects power into the Ethernet cable while passing data through, allowing a non-PoE device to deliver power to PoE-enabled devices. It combines both data and power from the source (switch/router) and external power supply to send to the end device.

--- Single Device Support: Typically designed to power one device at a time.

PoE Switch:

--- Main Role: A PoE switch is a network switch that can provide both data and power to multiple Ethernet devices (such as IP cameras, VoIP phones, and access points) simultaneously over the same Ethernet cable.

--- Operation: It has multiple Ethernet ports, each capable of transmitting both data and power, meaning that PoE switches can supply PoE to several devices at once.

--- Multi-Device Support: Designed to handle multiple devices, making it suitable for large networks that require power to many devices.

2. Number of Ports

PoE Injector:

--- Single Port: A PoE injector typically has one Ethernet input port for connecting to a standard non-PoE switch or router and one Ethernet output port for delivering both power and data to a single PoE-enabled device.

--- Limited Expansion: If more devices need power, a separate PoE injector is required for each device.

PoE Switch:

--- Multiple Ports: A PoE switch provides several Ethernet ports, each capable of delivering PoE to a device. The number of PoE ports varies by the switch model, and it typically supports anywhere from 4 to 48 ports or more.

--- Scalable: Can easily scale to support multiple PoE-powered devices, making it ideal for larger installations or networks.

3. Power Delivery

PoE Injector:

Limited Power Delivery: PoE injectors can provide power according to the PoE standard it supports, such as:

--- IEEE 802.3af (PoE): Delivers up to 15.4W per port.

--- IEEE 802.3at (PoE+): Delivers up to 25.5W per port.

--- IEEE 802.3bt (PoE++ or 4PPoE): Delivers up to 60W or 100W per port (Type 3 and Type 4).

--- External Power Source: The power delivered through the injector depends on the power source connected to the injector (e.g., an AC adapter). Typically, injectors can support lower-to-medium power requirements for a single device.

PoE Switch:

--- Higher Power Delivery: PoE switches can supply higher amounts of power across multiple ports simultaneously. A single switch can deliver power to several devices, with the ability to support higher-wattage devices such as high-power IP cameras, PTZ cameras, and large wireless access points.

--- Built-In Power Supply: The power supply is integrated within the switch, enabling it to deliver PoE to all connected devices, depending on the total power budget of the switch (e.g., 250W, 500W, or more, depending on the model).

4. Scalability

PoE Injector:

--- Limited Scalability: A PoE injector is a point solution for a single device. If you need to power multiple devices, each device would require its own PoE injector.

--- Ideal for Small or Specific Deployments: Perfect for small setups or when adding PoE capability to a single device in an existing network infrastructure.

PoE Switch:

--- Highly Scalable: PoE switches are designed for scalability and are ideal for larger deployments. They can support a large number of PoE devices, and more devices can be easily added by connecting additional devices to available ports.

--- Large Network Support: Suitable for powering multiple devices across large networks, such as in businesses, campuses, or industrial environments.

5. Complexity and Installation

PoE Injector:

--- Simplicity: PoE injectors are generally simple to install. They only require an Ethernet cable connection from the non-PoE switch/router to the injector, and another Ethernet cable from the injector to the PoE-enabled device. The injector requires an external power supply, typically plugged into a standard AC outlet.

--- Low Complexity: Ideal for users who need to power a single PoE device without the complexity of managing a full PoE switch.

PoE Switch:

--- More Complex: Installing a PoE switch involves configuring the switch (if needed), connecting multiple Ethernet cables for both data and power, and possibly managing the network traffic through advanced features such as VLANs, QoS (Quality of Service), and PoE scheduling.

--- Requires Dedicated Space: A PoE switch typically requires more physical space in a server room or network closet compared to a PoE injector.

6. Cost

PoE Injector:

--- Cost-Effective: PoE injectors are typically less expensive than PoE switches. They are a good solution for cost-conscious deployments where only one or a few devices need PoE capabilities.

--- Low-Cost Solution for Small Setups: Ideal when there’s a need to add PoE support to a small number of devices without upgrading the entire network infrastructure.

PoE Switch:

--- Higher Initial Cost: PoE switches are more expensive due to their multiple ports and higher power capabilities. The cost increases with the number of PoE ports and the power budget.

--- Best for Larger Deployments: Although they have a higher upfront cost, PoE switches become cost-effective for larger installations, as they allow centralized management and the ability to support numerous PoE devices with a single unit.

7. Use Cases

PoE Injector:

Best for Individual Devices: PoE injectors are ideal when only a few devices need PoE power and where a full PoE switch may be overkill. Examples include:

--- Single IP cameras in remote locations.

--- Wireless access points in areas with existing network switches but no PoE capability.

--- VoIP phones when a non-PoE switch is present.

PoE Switch:

--- Best for Large Networks: PoE switches are suitable for larger, more complex networks where multiple devices need PoE. Examples include:

--- Security camera systems with multiple cameras spread across a facility.

--- Smart office or campus networks where several PoE-powered devices need centralized management.

--- Building automation systems and industrial IoT networks.

Summary of Differences

Conclusion

A PoE injector is a simple, cost-effective solution for providing PoE to a single device when a full PoE switch isn't required. It is ideal for small-scale or point solutions. A PoE switch, on the other hand, is a more complex and scalable solution for powering multiple devices simultaneously, making it ideal for larger networks, businesses, or environments with many PoE devices. While both solutions deliver power and data over Ethernet, the choice between a PoE injector and a PoE switch depends on the scale, complexity, and cost considerations of the network deployment.
