An industrial PoE passthrough switch (PoE-powered switch) eliminates local AC power outlets and expensive electrical infrastructure in remote edge networks. By receiving up to 90W of IEEE 802.3bt Type 4 PoE power from a central Power Sourcing Equipment (PSE), it extends Gigabit Ethernet connectivity and distributes PoE power through four downstream ports, providing up to 30W PoE+ output per port for IP cameras, wireless APs, IoT sensors, and other edge devices in harsh -40°C to 75°C industrial environments.

1. Eliminating Trenching Costs & Local AC Infrastructure

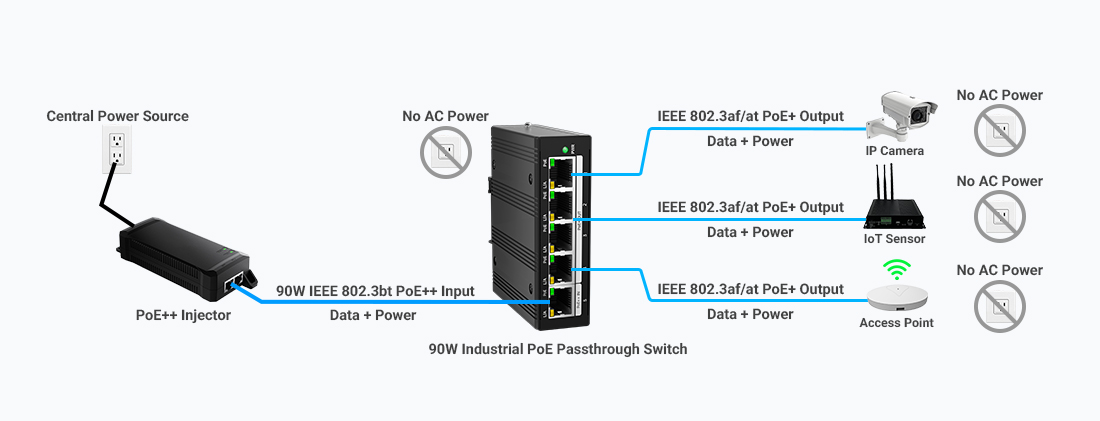

Running local AC power lines or installing outdoor transformer boxes can significantly increase deployment costs. A 90W IEEE 802.3bt PoE-powered switch receives high-power input over the incoming Ethernet line from a PoE++ injector or PoE-enabled network source, eliminating the need for dedicated local power drops.

2. 90W PoE++ Input to Four-Port 30W PoE+ Device Expansion

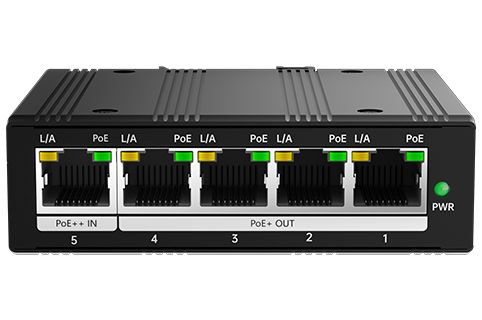

While traditional PoE splitters typically power a single endpoint, an industrial passthrough switch accepts up to 90W IEEE 802.3bt PoE++ input and distributes power through four IEEE 802.3af/at compliant PoE output ports, providing up to 30W per port. This allows one long-distance Ethernet connection to support multiple edge terminals simultaneously.

3. Hardened Protection for Harsh Outdoor & Industrial Environments

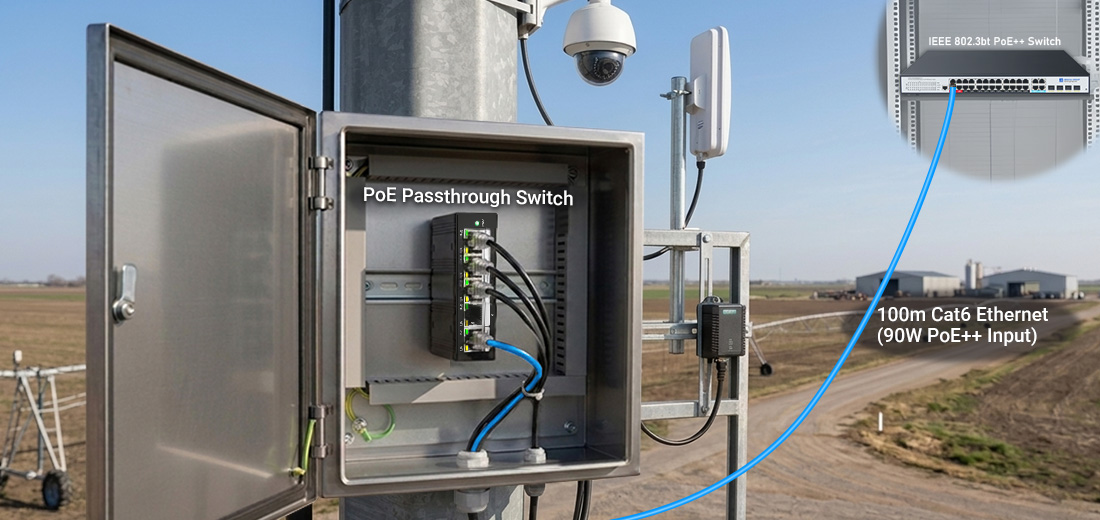

Outdoor poles and factory environments expose networking equipment to extreme temperatures, electrical interference, and transient surges. Designed with fanless metal housing, -40°C to 75°C operating capability, and 6KV surge protection, industrial PoE passthrough switches provide reliable operation for demanding edge deployments.

Recommended Installation Workflow for 90W Industrial PoE Passthrough Switch Deployment

Follow this 3-stage hardware installation workflow to verify power budgets, wiring connections, and reliable network performance.

Q: Can this 90W passthrough switch power high-power 60W or 90W PTZ cameras on its output ports?

A: No. The downstream output ports (Ports 1–4) support IEEE 802.3af/at PoE standards, providing up to 30W per port. This switch is optimized for multiple standard PoE/PoE+ edge devices typically consuming 15W–30W each, such as fixed IP cameras, dome cameras, wireless access points, and VoIP phones, rather than a single high-power PoE++ device requiring 60W or more.

Q: What happens if the upstream PoE injector only delivers 30W (PoE+) or 60W (PoE++) instead of 90W?

A: The passthrough switch will still boot and operate normally because its internal circuit is backward-compatible. However, the available total power budget distributed across Ports 1–4 will be reduced accordingly. For full 4-port multi-device operation under peak loads, feeding the uplink with a true 90W IEEE 802.3bt Class 8 power source is strongly recommended.
