As heavy-duty edge applications—such as multi-sensor PTZ tracking cameras, outdoor Wi-Fi 7 base stations, and localized AI computing nodes—proliferate across municipal and industrial grids, the demand for high-capacity PoE++ Switch hardware has skyrocketed. However, this surge has triggered a dangerous influx of budget-engineered "commercial clones" into the B2B market. While these look-alike systems boast impressive specifications on their marketing brochures, a rigorous technical audit of their physical shell and network interfaces reveals severe shortcuts that compromise operational continuity in mission-critical field deployments.
Unlike standard commercial deployments, true industrial environments demand radical thermal dissipation and complete electromagnetic isolation. Commercial clones save manufacturing costs precisely where it hurts performance most: the physical enclosure design and the structural integrity of the network interfaces.
⚠️ The Two Fatal Weakpoints of Unoptimized Hardware

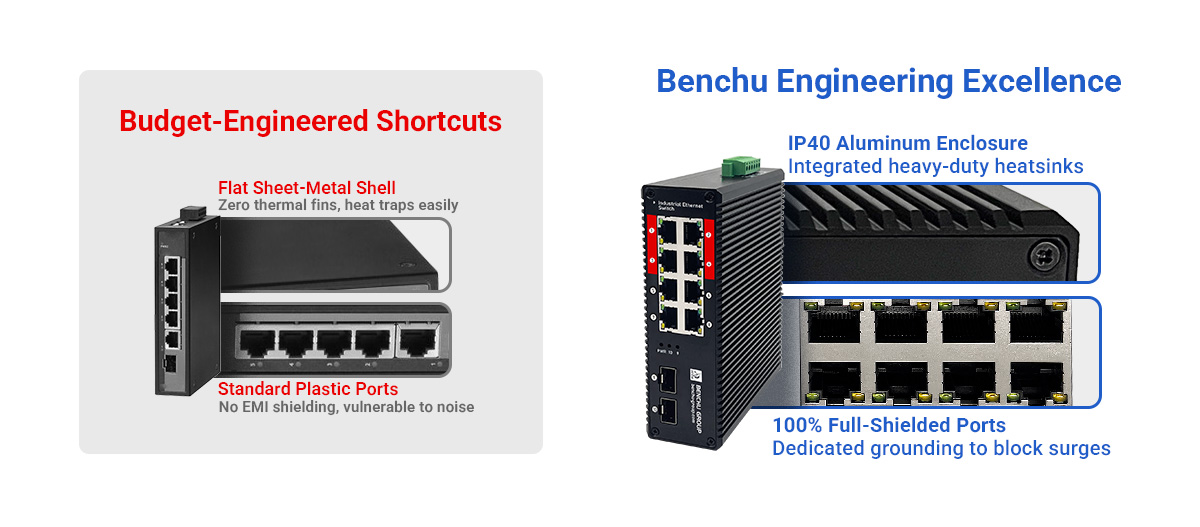

First, a flat sheet-metal enclosure lacks the surface area extension provided by integrated fins. When pushing high-power Type 4 PoE workloads across multiple channels, internal temperatures surge rapidly. Without active structural thermal pathways, heat builds into a localized thermal trap, accelerating the aging of critical internal chipsets.
Second, unshielded plastic network ports act as open windows for electromagnetic noise. In proximity to industrial motors, heavy machinery, or strong power grids, these unshielded openings allow cross-talk and EMI surges to bypass internal filter stages entirely, resulting in massive packet drop rates and random network drops.
| Hardware Element | Commercial Clone Deficiencies | Benchu Engineering Standard |
|---|---|---|
| Thermal Management | Flat sheet-metal surfaces; no thermal fins, leading to high heat traps. | IP40 extruded aluminum with integrated thick, heavy-duty cooling fins. |
| Port Shielding | Standard unshielded plastic interfaces; vulnerable to industrial EMI noise. | 100% full-metal shielded ports providing comprehensive grounding and isolation. |
To protect your field infrastructure from premature failure and unexpected network downs, procurement teams and network engineers must look past superficial datasheet marketing. It is vital to execute an empirical, hardware-level verification audit focusing on three core industrial design pillars:

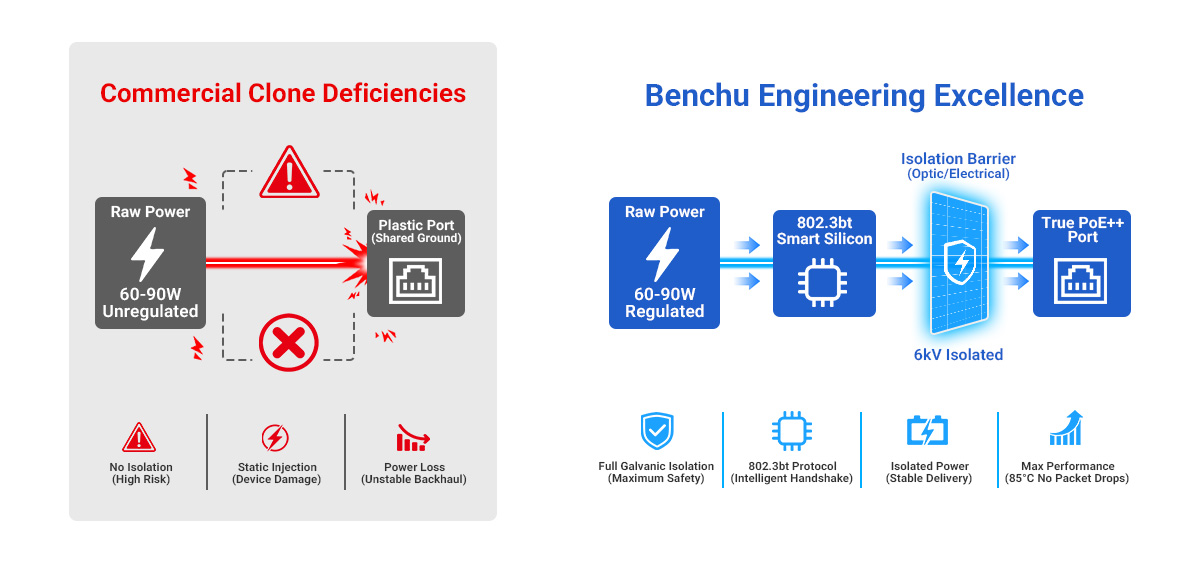

True IEEE 802.3bt hardware utilizes a precise, multi-stage hardware handshake before releasing Type 4 power up to 90W. It safely checks the signature resistance and capacitance of the Powered Device (PD) across four pairs of twisted copper wires. This intelligent classification protocol dynamically reads whether the device requires Class 5 through Class 8 power limits, continuously negotiating via LLDP (Link Layer Discovery Protocol) data blocks under active conditions.
Commercial clones frequently bypass this complex silicon negotiation. To save manufacturing costs, they rely on basic hardware injectors that force a static high voltage straight down the copper lines. This improper, unnegotiated power delivery creates massive risks: it can instantly fry legacy non-PoE hardware accidentally patched into the network, or overheat mid-power endpoints that are not engineered to withstand raw, unmanaged Type 4 energy feeds.
Industrial environments are heavily plagued by severe electromagnetic interference (EMI), variable ground loops, and high-voltage lightning transients. A genuine industrial-grade switch features heavy-duty electrical isolation barriers—often using high-grade optocouplers and dedicated transformers—that isolate the delicate core switching logic from the raw power delivery circuits.
When a cheap commercial clone suffers an outdoor lightning surge on an external PTZ camera copper line, it lacks the necessary per-port barriers to dump that excess energy safely to ground. Because the internal grounding plane is shared across all channels without true physical isolation, the transient pulse routinely cascades straight through the data backplane. The resulting chain-reaction short circuit instantly destroys the entire switch assembly, taking every other connected device down with it.
A high-power edge switch is only as reliable as its backhaul interface. When multiple high-draw devices pull heavy Type 4 wattage simultaneously, a massive amount of localized thermal dissipation is generated inside the switch housing. Genuine industrial architectures isolate these high-heat components from the sensitive data ports using advanced localized thermal barriers and distinct physical PCB separation.
Commercial clones, by contrast, squeeze all components together onto a single unshielded board. As full-load power operations bake the enclosure from the inside out, this uncontrolled heat conducts directly into the adjacent SFP optical transceiver slots. The excessive thermal stress shifts the operating laser wavelength of the SFP modules, leading to sudden, hard-to-diagnose fiber packet drops, high signal jitter, or absolute backhaul link disconnection that blinds the central control center completely.
Investing in a rigorously audited, true industrial platform ensures critical operational advantages and long-term lifecycle cost savings for network operators, municipal engineers, and systems integrators alike:
Protect your network edge from the hidden vulnerabilities of consumer-grade clones. Contact Benchu Group’s engineering team today for independent laboratory testing data, complete structural compliance records, and direct project-level pricing.
